SKU: TBS-D-06B-76-DF
Drive-Flex 76 Tooth 06B Duplex Sprocket Tapered Locking Bush Type for 3/8 inch Pitch Chain - Bush not Incl - Allow 2-3 Days
Drive-Flex 76 Tooth 06B Duplex Sprocket Tapered Locking Bush Type for 3/8 inch Pitch Chain - Bush not Incl - Allow 2-3 Days
Regular price
$104.10
ex VAT
Regular price
Sale price
$104.10
ex VAT
Equivalent to: TS32-76 06B2 TS31-76 32-76
In stock
Price Break
5+
$103.06
10+
$98.90
20+
$96.81
50+
$93.69
100+
$91.61
500+
$86.40
1000+
$72.87
Description
Description
Tapered Bore Sprockets: Small sprockets are usually manufactured from C45 Steel and the large sprockets maybe supplied in G22 Cast Iron. These taper bore sprockets accept tapered locking bushes in a wide variety of shaft sizes to allow the end user to easily fit the sprocket to the shaft with minimal effort and no machining.
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.
Equivalent: TS32-76 06B2 TS31-76 32-76
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.
Equivalent: TS32-76 06B2 TS31-76 32-76
- Brand / Quality:
- Drive-Flex - High Quality
- Number of Teeth:
- 76
- Pitch:
- 9.53mm = 0.375 (3/8) inch
- Item Type:
- BS European Standard
Technical
Technical

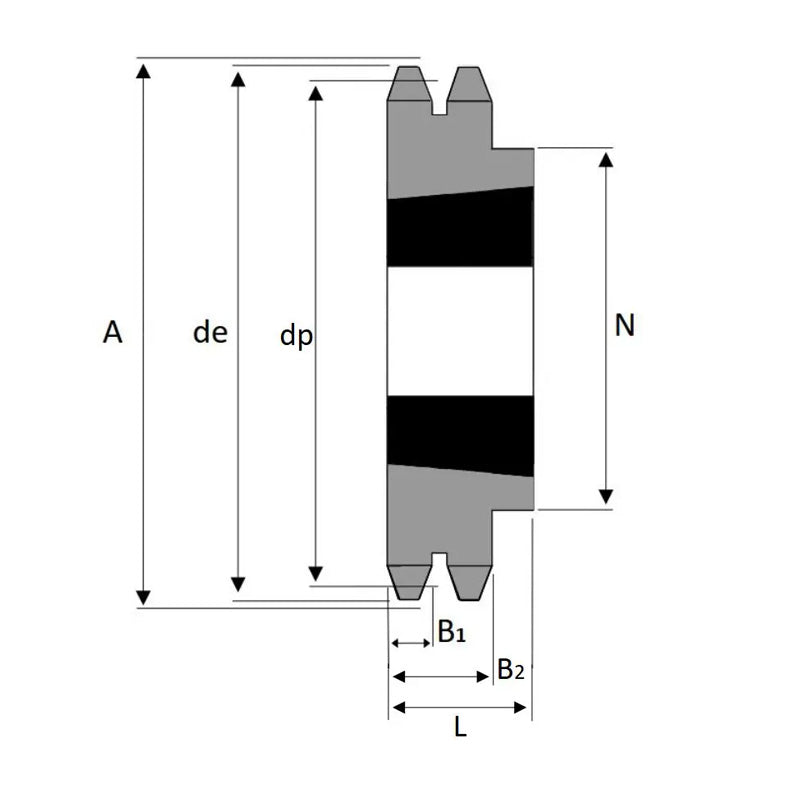

| Tooth Radius r3 | 10mm |
|---|---|
| Chamfer c | 1mm |
| Tooth Width b1 | 5.2mm |
| Tooth Width B1 | 5.3mm |
| Tooth Width B2 | 15.4mm |
| Tooth Width B3 | 25.6mm |
| Pitch | 9.525mm |
| Width Between Inner | 5.72mm |
| Roller Diameter | 6.35mm |
| No. of Teeth | 76 |
| Outer Diameter de | 234.9mm |
| Pitch Diameter dp | 230.49mm |
| Hub Diameter dm | 80mm |
| Length Through Bore A | 25mm |
| Reference | 32-76 |
| Taper Bush | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=1610+tapered+locking+bush>1610 Click Here</a> |
