SKU: TBS-S-16B-57

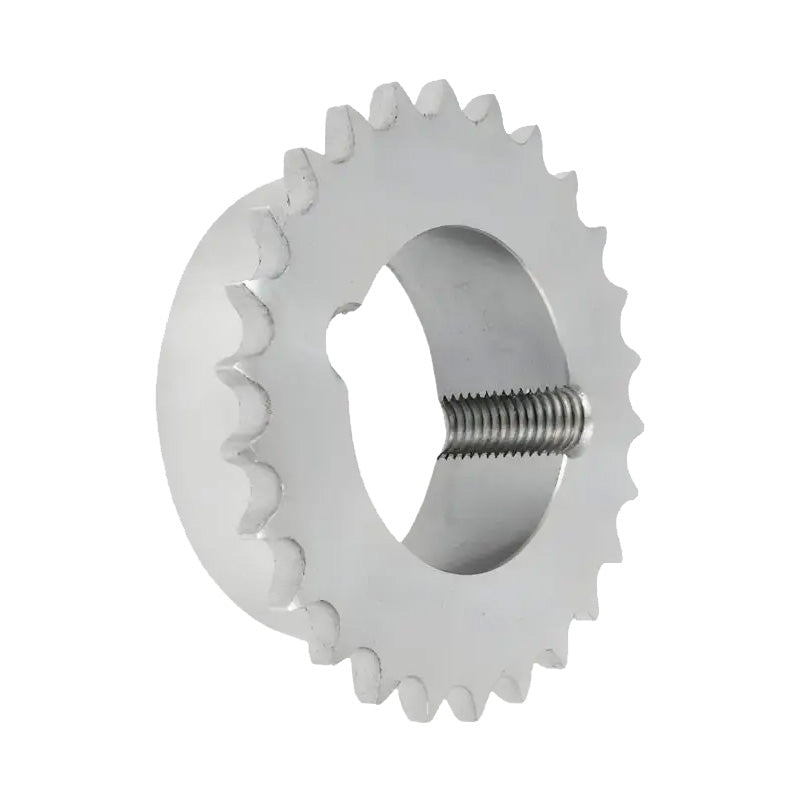

57 Tooth 16B Simplex Sprocket Tapered Locking Bush Type for 1 inch Pitch Chain Bush not Incl.
57 Tooth 16B Simplex Sprocket Tapered Locking Bush Type for 1 inch Pitch Chain Bush not Incl.
Regular price
$311.04
ex VAT
Regular price
Sale price
$311.04
ex VAT
Equivalent to: 16B1 TS81-57 81-57
In stock
Price Break
10+
$276.83
19+
$261.27
29+
$258.16
39+
$255.05
49+
$251.94
74+
$248.83
99+
$233.28
199+
$230.17
249+
$227.06
499+
$223.95
999+
$217.73
Couldn't load pickup availability
Description
Description

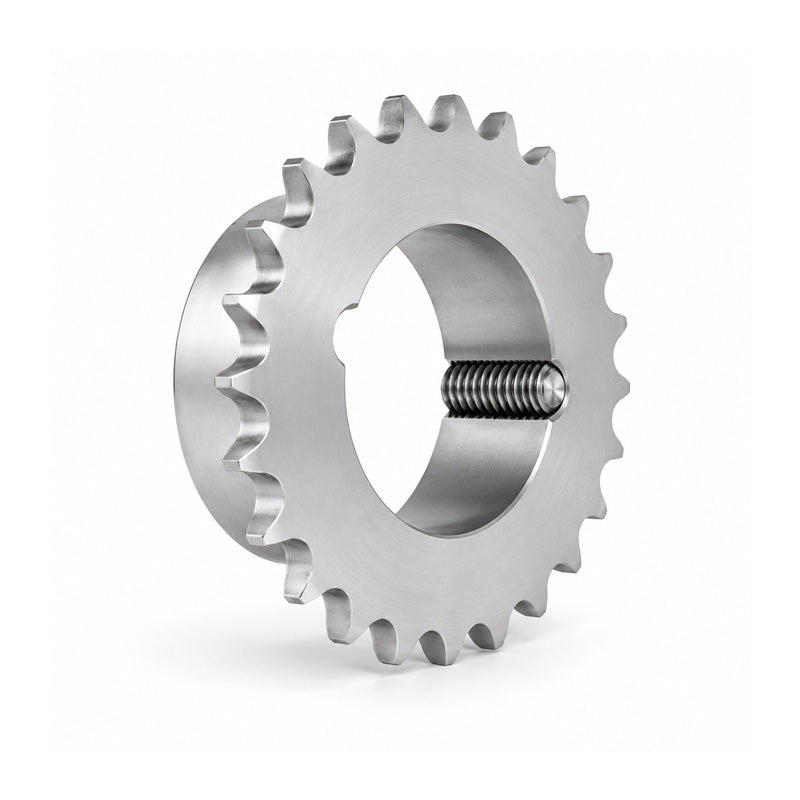

Tapered Bore Sprockets: Small sprockets are usually manufactured from C45 Steel and the large sprockets maybe supplied in G22 Cast Iron. These taper bore sprockets accept tapered locking bushes in a wide variety of shaft sizes to allow the end user to easily fit the sprocket to the shaft with minimal effort and no machining.
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.
Equivalent: 16B1 TS81-57 81-57
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.
Equivalent: 16B1 TS81-57 81-57
- Brand / Quality:
- Major Brand - High Quality
- Number of Teeth:
- 57
- Chain Pitch:
- 25.4mm = 1 inch
- Item Type:
- BS European Standard
Technical
Technical

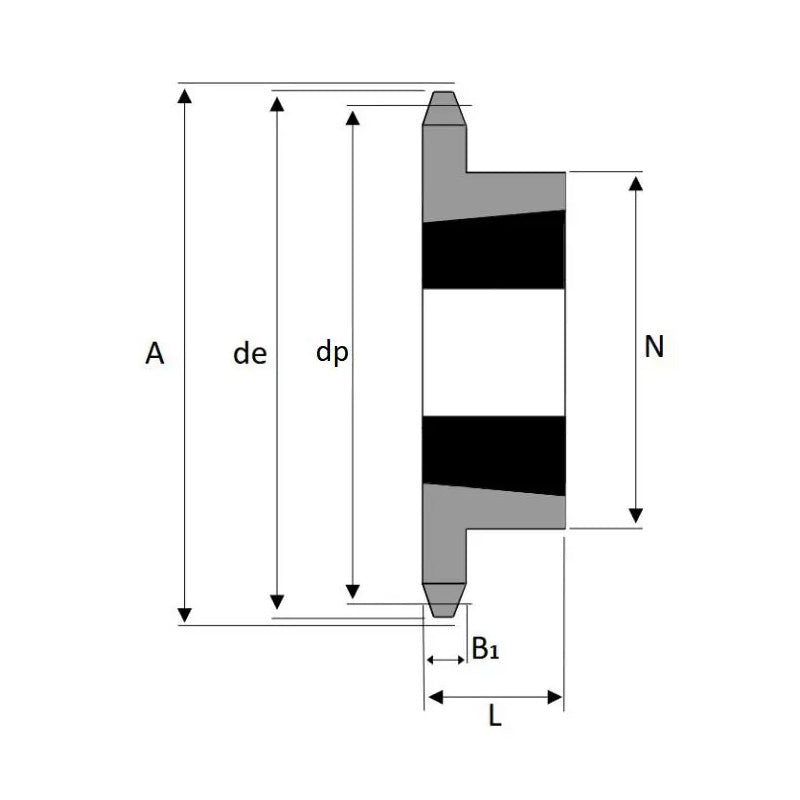

| Tooth Radius r3 | 26mm |
|---|---|
| Chamfer c | 2.5mm |
| Tooth Width b1 | 15.8mm |
| Tooth Width B1 | 16.2mm |
| Tooth Width B2 | 47.7mm |
| Tooth Width B3 | 79.6mm |
| Pitch | 25.4mm |
| Width Between Inner | 17.02mm |
| Roller Diameter | 15.88mm |
| No. of Teeth | 57 |
| Outer Diameter de | 474mm |
| Pitch Diameter dp | 461.07mm |
| Hub Diameter dm | 140mm |
| Length Through Bore A | 51mm |
| Reference | 81-57 |
| Taper Bush | 3020 |
