SKU: TEN-ARM-SE27-DUN
Dunlop SE27 Chain and V-Belt Tension Arm
Dunlop SE27 Chain and V-Belt Tension Arm
Regular price
$65.46
ex VAT
Regular price
Sale price
$65.46
ex VAT
In stock
Price Break
10+
$58.26
19+
$54.99
29+
$54.33
39+
$53.68
49+
$53.02
74+
$52.37
99+
$49.10
199+
$48.44
249+
$47.79
499+
$47.13
999+
$45.82
Description
Description
Dunlop Chain and V-Belt Tension Arm: The tensioning element with the specification SE (SE 11 to SE 45) is the mostly used standard unit for tensioning all kinds of chain and belt drives.
Benefits: Suitable for applications in temperature range from -40 deg C to +80 deg C
- Brand / Quality:
- Dunlop - Good Quality
- Thread Size:
- M12
- Part No:
- SE27

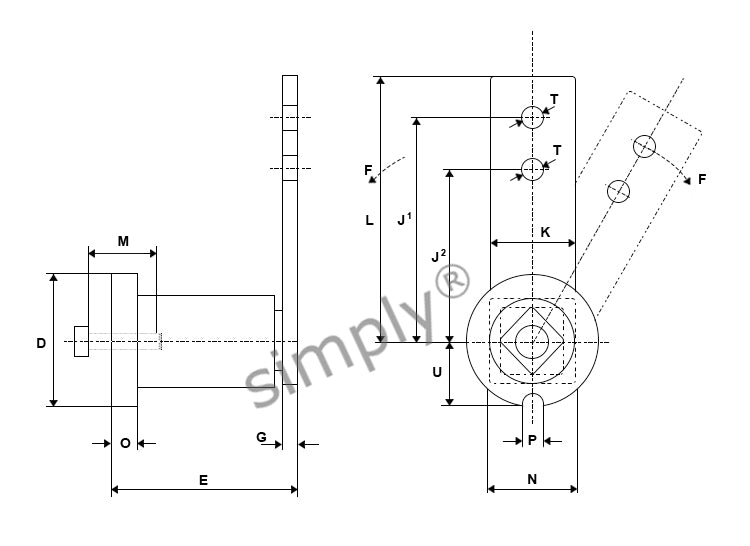

Technical
Technical
| Part No. | SE27 |
|---|---|
| D | 78mm |
| E | 108 (+2/-0.5)mm |
| G | 8mm |
| H | M12 |
| J<sup>1</sup> | 130mm |
| J<sup>2</sup> | 130mm |
| K | 50mm |
| L | 155mm |
| M | 40mm |
| N | 52mm |
| O | 15mm |
| P | 10.5mm |
| T | 12.5mm |
| U | 34.3mm |
