SKU: TS-N5/8-SE27-DUN
Dunlop 10BX15T N5/8 inch Sprocket for SE27 Tension Arm - Allow 2-3 Days
Dunlop 10BX15T N5/8 inch Sprocket for SE27 Tension Arm - Allow 2-3 Days
Regular price
$18.72
ex VAT
Regular price
Sale price
$18.72
ex VAT
In stock
Price Break
10+
$16.66
19+
$15.72
29+
$15.54
39+
$15.35
49+
$15.16
74+
$14.98
99+
$14.04
199+
$13.85
249+
$13.67
499+
$13.48
999+
$13.10
Description
Description

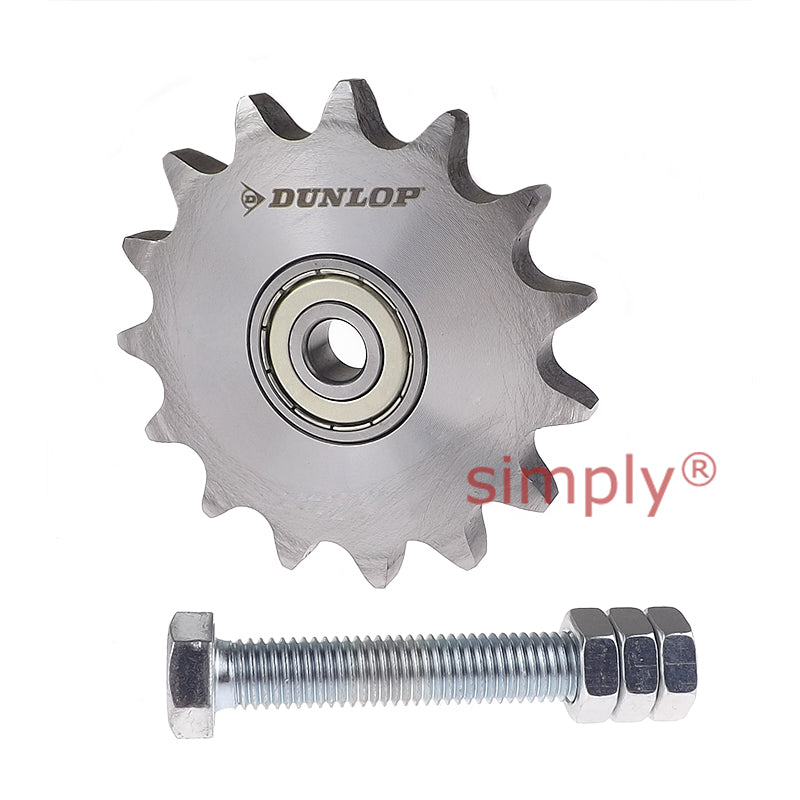

Dunlop Tension Sprocket: The idler sprocket set is designed as a tensioning element for applications in chain drives. The idler sprocket runs on a self-lubricating ball bearing Type 2Z. We have a range of idler sprockets to suit standard roller chain pitch sizes from O6B-1 to 24B-1.
Benefits: Suitable for applications in temperature range from -40 deg C to +80 deg C
- Brand / Quality:
- Dunlop - Good Quality
- Thread Size:
- M12
- Number of Teeth:
- 15
- Part No:
- N5/8 inch
Technical
Technical

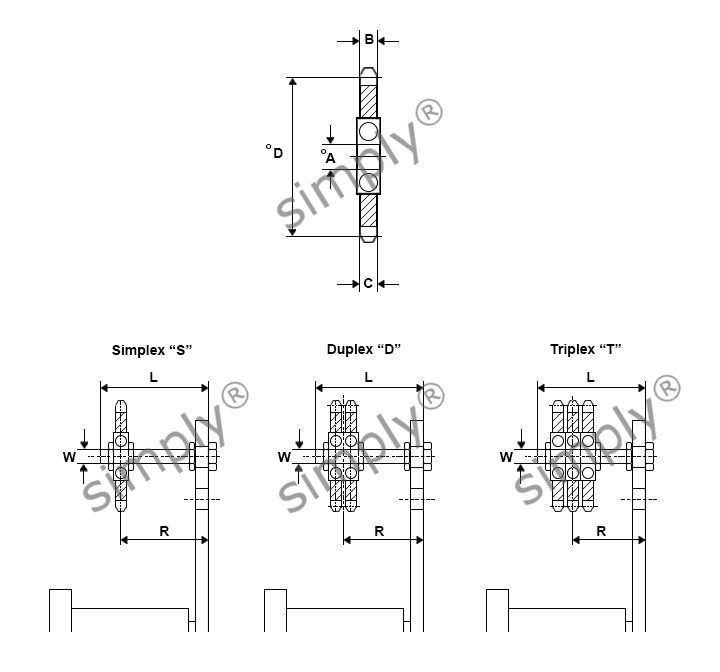

| Part No. | N5/8 inch |
|---|---|
| No of Teeth | 15 |
| W | M12mm |
| L | 80mm |
| A | 12mm |
| B | 9.1mm |
| C | 12mm |
| D | 76.36mm |
| Torque Hex Nut 0.5d | 35 Nm |
| Adjusting Range Track R | 27-65mm |
| Size SE | 27 |
| To Fit Roller Chain ANSI | 50 |
| To Fit Roller Chain DIN 8187 | ISO 10 B |
