SKU: TU35TF-SKF

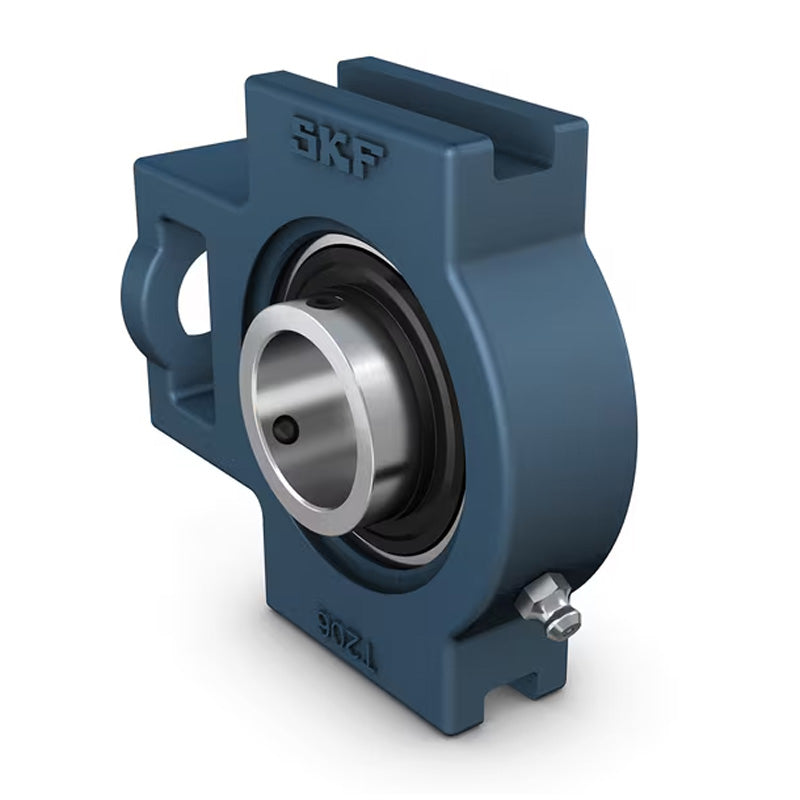

SKF TU35TF Grub Screw Type Take Up Unit 35mm Bore
SKF TU35TF Grub Screw Type Take Up Unit 35mm Bore
Regular price
$94.31
ex VAT
Regular price
Sale price
$94.31
ex VAT
In stock
Price Break
10+
$83.94
19+
$79.22
29+
$78.28
39+
$77.33
49+
$76.39
74+
$75.45
99+
$70.73
199+
$69.79
249+
$68.85
499+
$67.90
999+
$66.02
Description
Description
|
SKF Y-bearing Take-Up Units with Cast Housing and Grub Screws: This unit consists of a cast housing and an insert bearing. They are typically mounted in take-up frames and connected by an adjustment screw. A grease fitting is provided in the housing for re-lubrication. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 35mm
- Style:
- TU
Technical
Technical
| d | 35mm |
|---|---|
| A | 37mm |
| A1 | 13.5mm |
| A2 | 30mm |
| B | 42.9mm |
| D1 | 22mm |
| H | 103mm |
| H1 | 89mm |
| H2 | 64mm |
| L | 129mm |
| L1 | 78mm |
| L2 | 12mm |
| L3 | 64mm |
| N | 38mm |
| N1 | 17mm |
| s1 | 25.4mm |
| Static load Cr | 15.3 kN |
| Dynamic load Cor | 25.5 kN |
| Fatigue load limit Pu | 0.655 kN |
| Limiting speed | 5300 rpm |
| A5 | 22mm |
| Weight | 1.45 kg |
| Compatible end cover | ECY207 |
