SKU: TU45FM-SKF

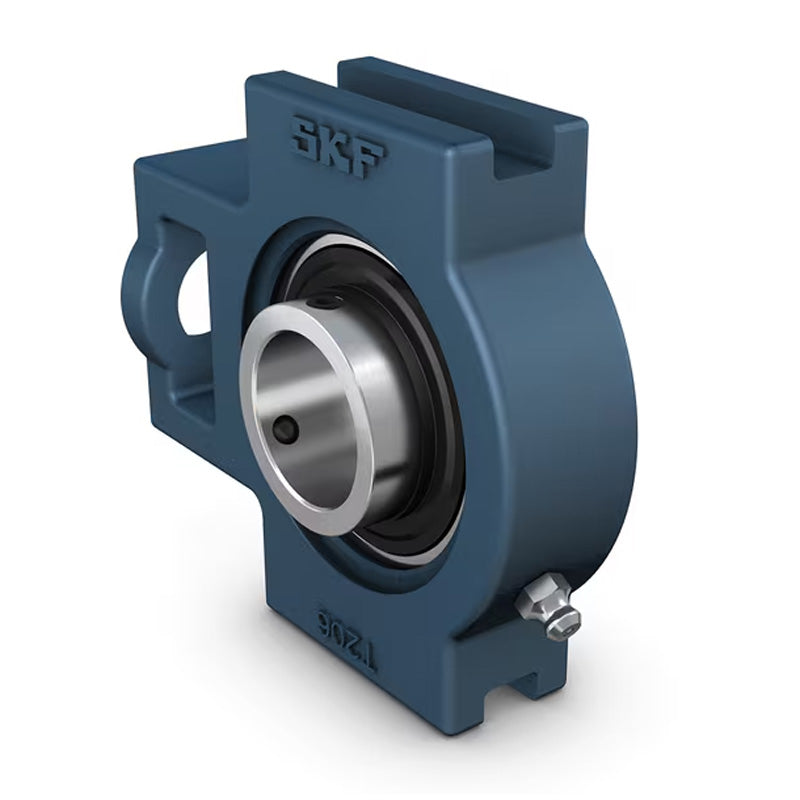

SKF TU45FM Eccentric Locking Collar Take Up Unit 45mm Bore
SKF TU45FM Eccentric Locking Collar Take Up Unit 45mm Bore
Regular price
$160.08
ex VAT
Regular price
Sale price
$160.08
ex VAT
In stock
Price Break
10+
$142.47
19+
$134.47
29+
$132.87
39+
$131.27
49+
$129.66
74+
$128.06
99+
$120.06
199+
$118.46
249+
$116.86
499+
$115.26
999+
$112.06
Description
Description
|
SKF Y-bearing Take-Up Units with Cast Housing and an Eccentric Locking Collar: This unit consists of a cast housing and an insert bearing. They are typically mounted in take-up frames and connected by an adjustment screw. A grease fitting is provided in the housing for re-lubrication. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 45mm
- Style:
- TU

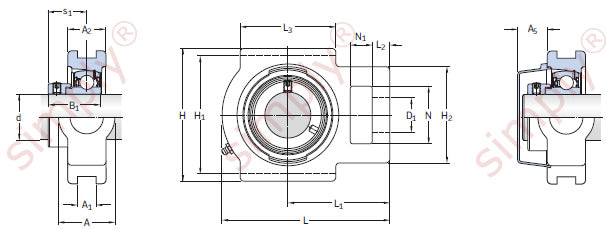

Technical
Technical
| d | 45mm |
|---|---|
| A | 49mm |
| A1 | 17.5mm |
| A2 | 35mm |
| B1 | 43.7mm |
| D1 | 29mm |
| H | 117mm |
| H1 | 101mm |
| H2 | 83mm |
| L | 144mm |
| L1 | 87mm |
| L2 | 15mm |
| L3 | 83mm |
| N | 49mm |
| N1 | 19mm |
| s1 | 32.7mm |
| Static load Cr | 21.6 kN |
| Dynamic load Cor | 33.2 kN |
| Fatigue load limit Pu | 0.915 kN |
| Limiting speed | 4300 rpm |
| A5 | 23mm |
| Weight | 2.3 kg |
| Compatible end cover | ECY209 |
