SKU: U005

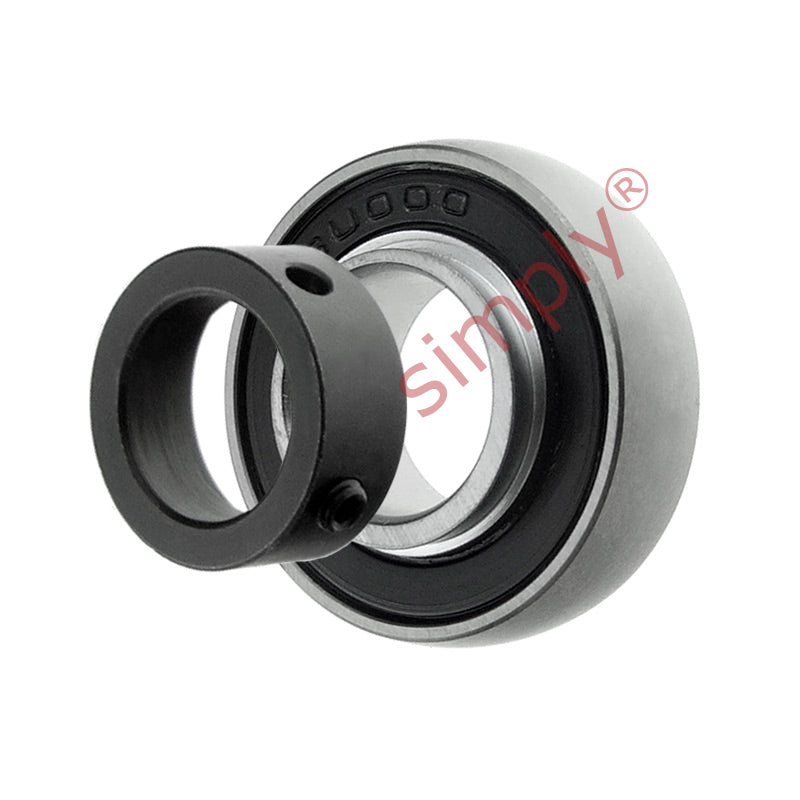

U005 Metric Eccentric Collar Type Bearing Insert with 25mm Bore 47mm Outside Dia
U005 Metric Eccentric Collar Type Bearing Insert with 25mm Bore 47mm Outside Dia
Regular price
$10.40
ex VAT
Regular price
Sale price
$10.40
ex VAT
In stock
Price Break
10+
$9.26
19+
$8.74
29+
$8.63
39+
$8.53
49+
$8.42
74+
$8.32
99+
$7.80
199+
$7.70
249+
$7.59
499+
$7.49
999+
$7.28
Description
Description
|
Miniature SA or RAE Series Eccentric Collar Type Insert: Sealed bearing insert with eccentric shaft locking collar and grub screws to allow tightening against the shaft once fitted.
This insert is typical of those found in housed bearings and has a spherical outer diameter to facilitate removal and re-fitting into a housing. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 47mm
- Style:
- U
Technical
Technical
| d | 25mm |
|---|---|
| D | 47mm |
| L | 25.5mm |
| Bi | 17.5mm |
| Be | 12mm |
| r | 1mm |
| n | 6mm |
| B3 | 12mm |
| d1 | 36mm |
| A | 5mm |
| ds | M5X0.8 |
| Dynamic load | 10094 N ~ 1029.302 kgf |
| Static load | 5831 N ~ 594.597 kgf |
| Weight | 0.15 kg |
