SKU: UC.205-14

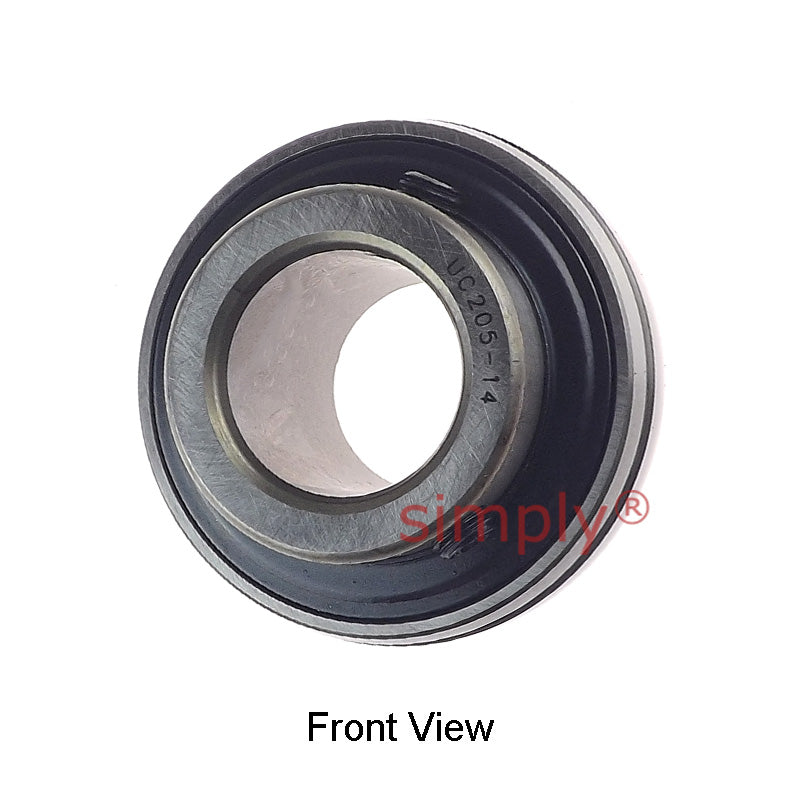

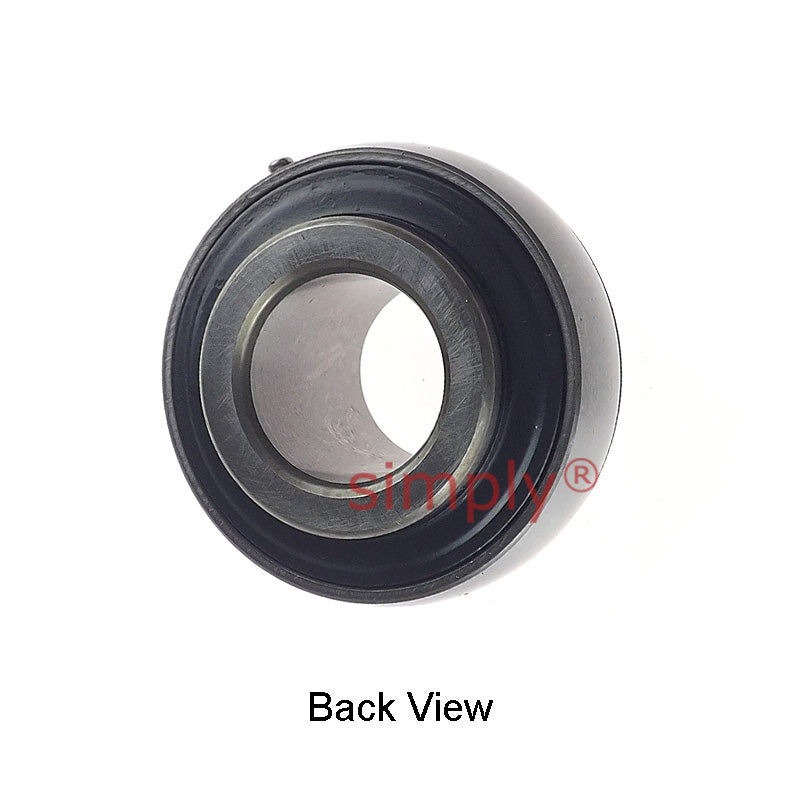

UC205-14 Imperial Bearing Insert with 7/8 inch Bore 52mm Outside Dia
UC205-14 Imperial Bearing Insert with 7/8 inch Bore 52mm Outside Dia
Regular price
$7.76
ex VAT
Regular price
Sale price
$7.76
ex VAT
Equivalent to: 1025-7/8G
In stock
Price Break
10+
$6.91
19+
$6.52
29+
$6.44
39+
$6.36
49+
$6.29
74+
$6.21
99+
$5.82
199+
$5.74
249+
$5.66
499+
$5.59
999+
$5.43
Description
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
Equivalent: 1025-7/8G
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 22.23mm = 0.875 (7/8) inch
- Outside Diameter:
- 52mm
- Style:
- UC
Technical
Technical
| d | 7/8 inch |
|---|---|
| D | 52mm |
| Bi | 34mm |
| Be | 17mm |
| n | 14.3mm |
| m | 19.7mm |
| G | 5.5mm |
| Grub screw | 1/4"-28 UNF |
| Weight | 0.23 kg |
| Dynamic load | 1100 kgf |
| Static load | 710 kgf |
| Rec max speed | 6250 rpm |
