SKU: UC.206.HT270

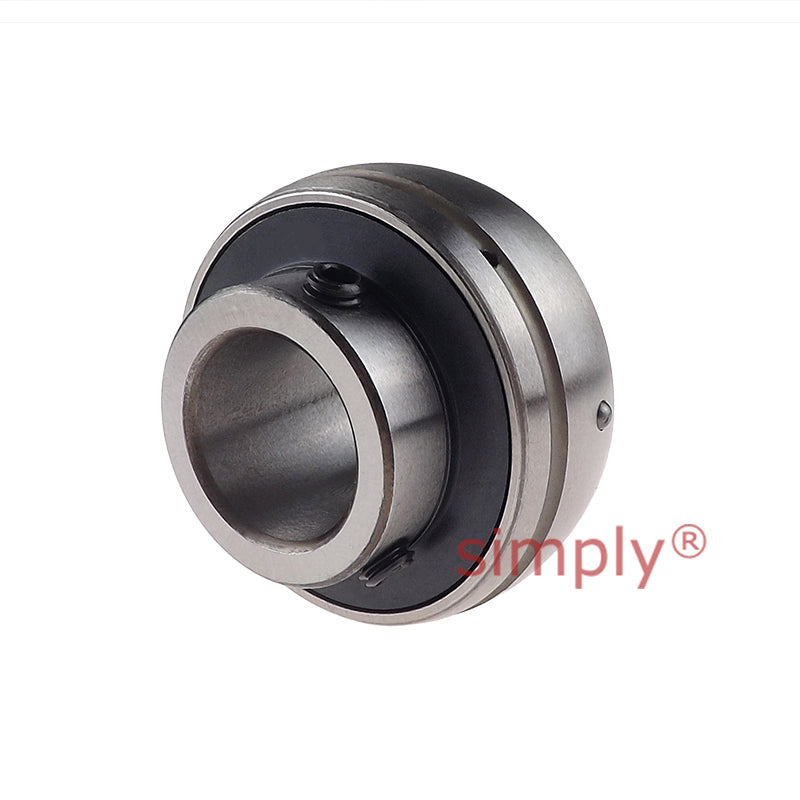

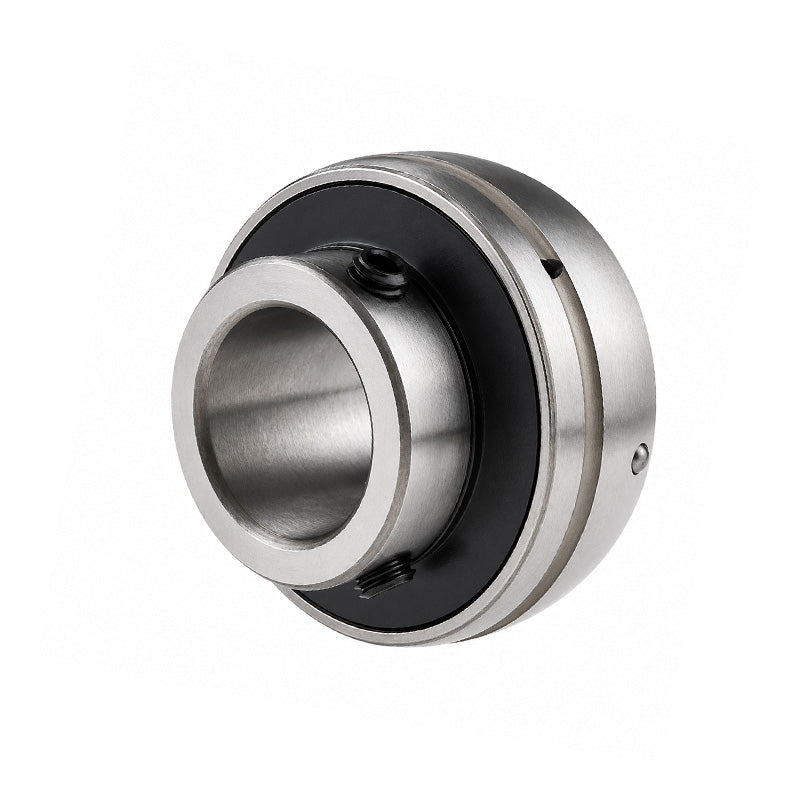

UC206HT270 High Temperature 270C Bearing Insert with 30mm Bore 62mm Outside Dia
UC206HT270 High Temperature 270C Bearing Insert with 30mm Bore 62mm Outside Dia
Regular price
$16.99
ex VAT
Regular price
Sale price
$16.99
ex VAT
Equivalent to: UC206HT270
In stock
Price Break
10+
$15.12
19+
$14.27
29+
$14.10
39+
$13.93
49+
$13.76
74+
$13.59
99+
$12.74
199+
$12.57
249+
$12.40
499+
$12.23
999+
$11.89
Description
Description
UC High Temperature Insert: High Temperature UC270C bearings are made of AISI 52100 steel with a Manganese Phosphate surface treatment, Increased radial clearance to compensate for thermal expansion, greased with Molyguard CF-2 grease from -35 deg C to 270ºC. These bearings are commonly used in Brick Manufacturing kiln carts, Ceramic industry kilns, High temperature rollers, Steel Manufacturing, Glass Manufacturing and many other applications where heat may affect the use and life of the bearing.
Benefits: High temperature resilience, Cost effective replacement insert, re-lubricatable, grub screw fixing
Equivalent: UC206HT270
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 62mm
- Width:
- 38.1mm
- Temperature Range:
- High Temp
Technical
Technical
| d | 30mm |
|---|---|
| D | 62mm |
| Bi | 38.1mm |
| Be | 19mm |
| n | 15.9mm |
| m | 22.2mm |
| G | 6mm |
| Grub Screw | M6x1 |
| Dynamic Load | 1520 kgf |
| Static Load | 1020 kgf |
| Weight | 0.32 kg |
| Turns per Min | 130 |
| Temp | 270 Deg C |
