SKU: UC.211-34

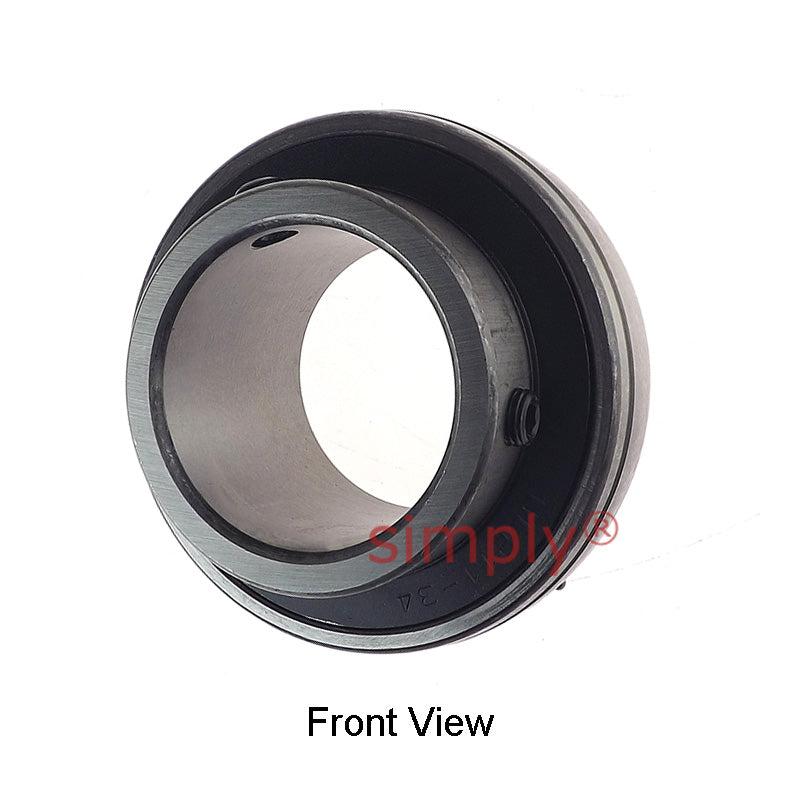

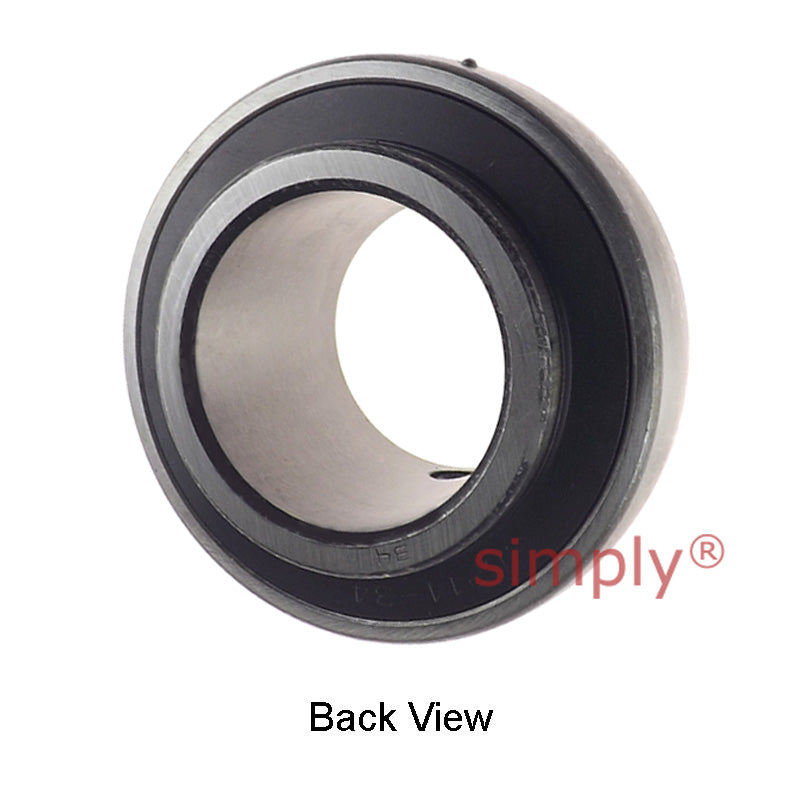

UC211-34 Imperial Bearing Insert with 2-1/8 inch Bore 100mm Outside Dia
UC211-34 Imperial Bearing Insert with 2-1/8 inch Bore 100mm Outside Dia
Regular price
$34.65
ex VAT
Regular price
Sale price
$34.65
ex VAT
In stock
Price Break
10+
$30.84
19+
$29.11
29+
$28.76
39+
$28.41
49+
$28.07
74+
$27.72
99+
$25.99
199+
$25.64
249+
$25.29
499+
$24.95
999+
$24.26
Description
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 53.98mm = 2.125 (2-1/8) inch
- Outside Diameter:
- 100mm
- Style:
- UC
Technical
Technical
| d | 2-1/8 inch |
|---|---|
| D | 100mm |
| Bi | 55.6mm |
| Be | 25mm |
| n | 22.2mm |
| m | 33.4mm |
| G | 10mm |
| Grub screw | 3/8-24 UNF |
| Weight | 1.15 kg |
| Dynamic load | 3400 kgf |
| Static load | 2550 kgf |
