SKU: UC.212

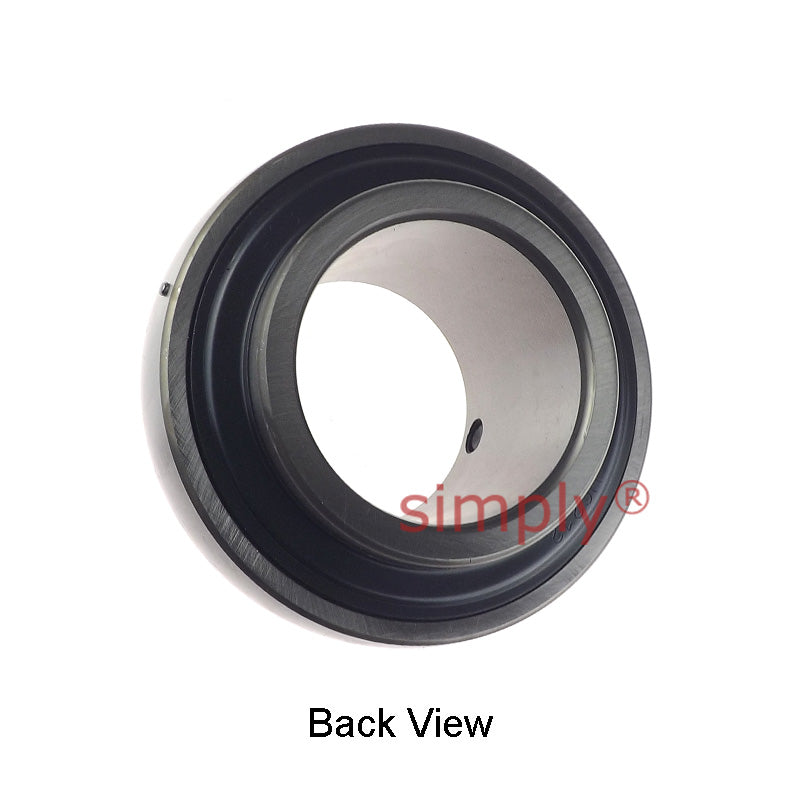

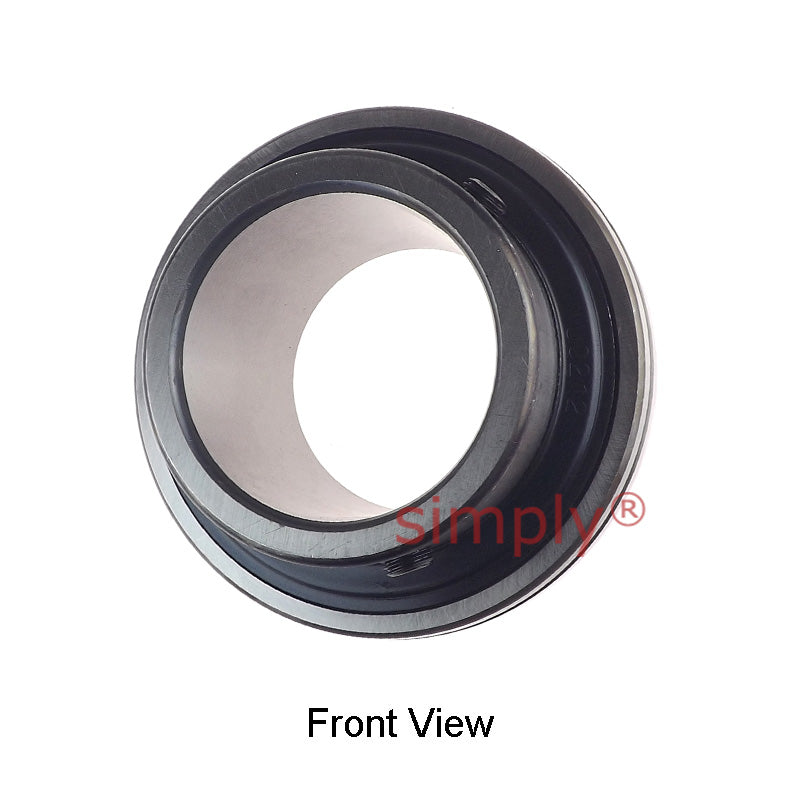

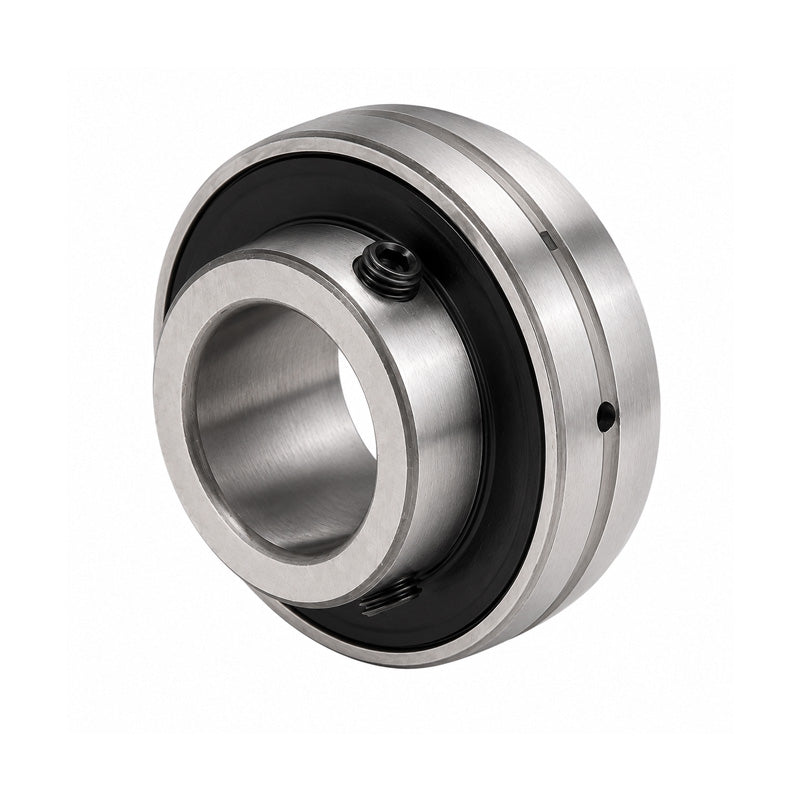

UC212 Metric Bearing Insert with 60mm Bore 110mm Outside Dia
UC212 Metric Bearing Insert with 60mm Bore 110mm Outside Dia
Regular price
$40.87
ex VAT
Regular price
Sale price
$40.87
ex VAT
Equivalent to: 1060-60G
In stock
Price Break
10+
$36.37
19+
$34.33
29+
$33.92
39+
$33.51
49+
$33.10
74+
$32.70
99+
$30.65
199+
$30.24
249+
$29.84
499+
$29.43
999+
$28.61
Description
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
Equivalent: 1060-60G
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 60mm
- Outside Diameter:
- 110mm
- Style:
- UC
Technical
Technical
| d | 60mm |
|---|---|
| D | 110mm |
| Bi | 65.1mm |
| Be | 27mm |
| n | 25.4mm |
| m | 39.7mm |
| G | 10mm |
| Grub screw | M10x1.0 |
| Weight | 1.45 kg |
| Dynamic load | 4100 kgf |
| Static load | 3150 kgf |
| Rec max speed | 2800 rpm |
