SKU: UC.212-36

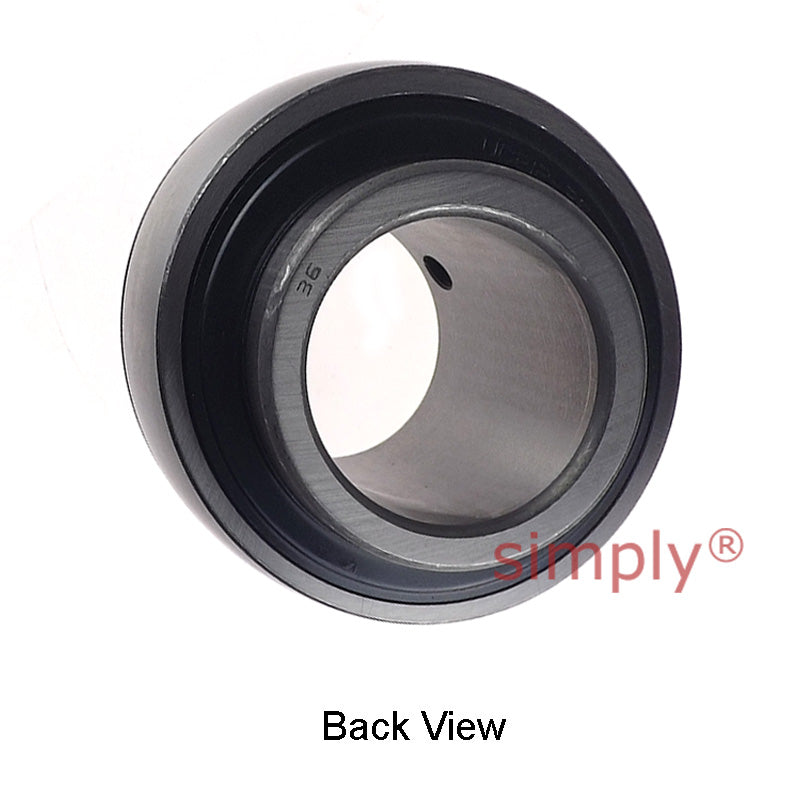

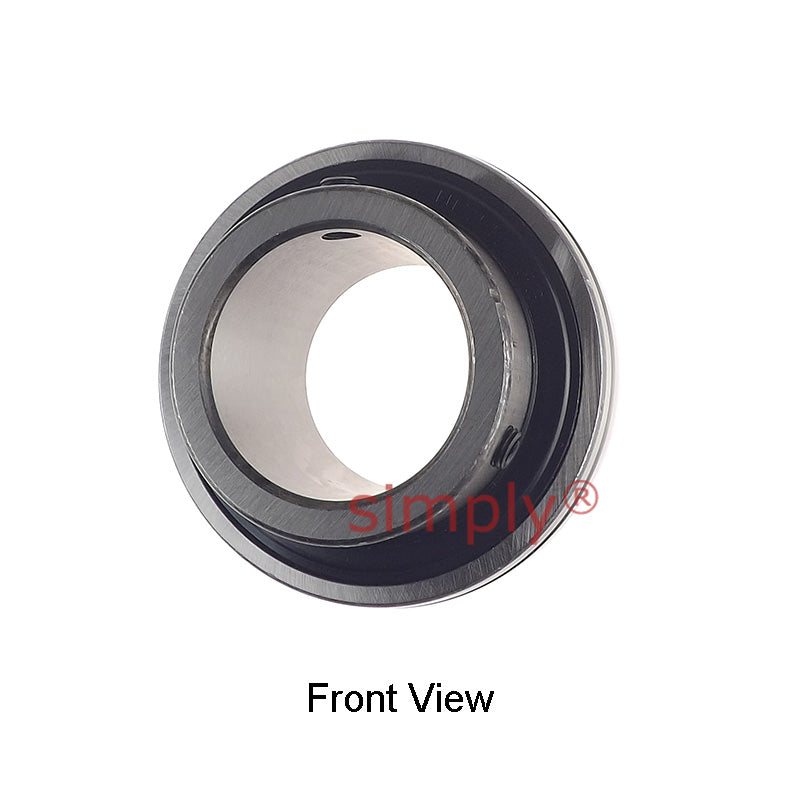

UC212-36 Imperial Bearing Insert with 2-1/4 inch Bore 110mm Outside Dia
UC212-36 Imperial Bearing Insert with 2-1/4 inch Bore 110mm Outside Dia
Regular price
$19.22
ex VAT
Regular price
Sale price
$19.22
ex VAT
In stock
Price Break
10+
$17.11
19+
$16.14
29+
$15.95
39+
$15.76
49+
$15.57
74+
$15.38
99+
$14.42
199+
$14.22
249+
$14.03
499+
$13.84
999+
$13.45
Couldn't load pickup availability
Description
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 57.15mm = 2.25 (2-1/4) inch
- Outside Diameter:
- 110mm
- Style:
- UC
- Type:
- Spherical Outer
Technical
Technical
| d | 2-1/4 inch |
|---|---|
| D | 110mm |
| Bi | 65.1mm |
| Be | 27mm |
| n | 25.4mm |
| m | 39.7mm |
| G | 10mm |
| Grub screw | 3/8"-24 UNF |
| Weight | 1.67 kg |
| Dynamic load | 4100 kgf |
| Static load | 3150 kgf |
