SKU: UC.217

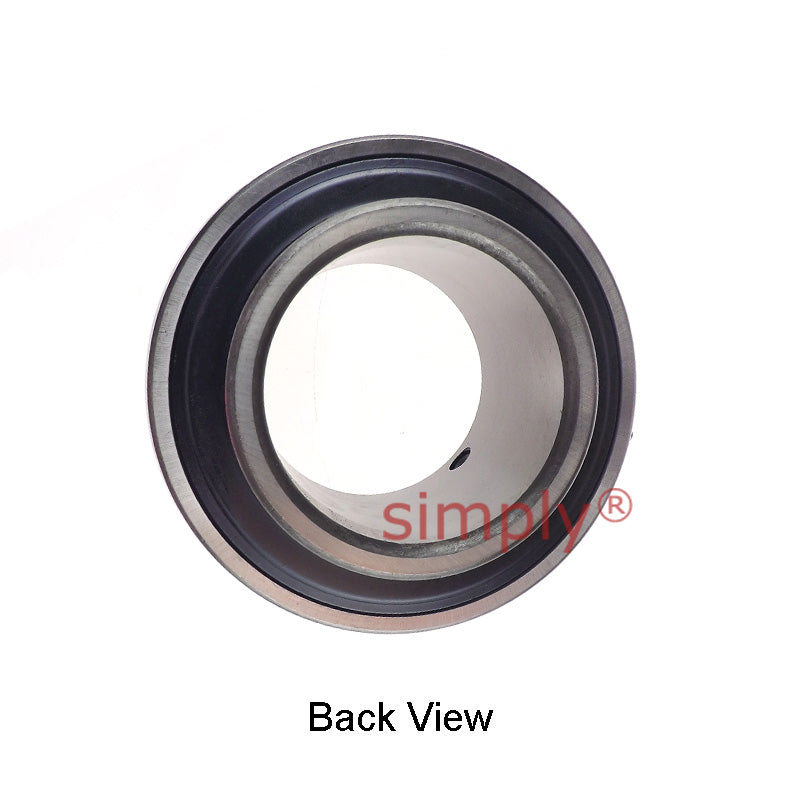

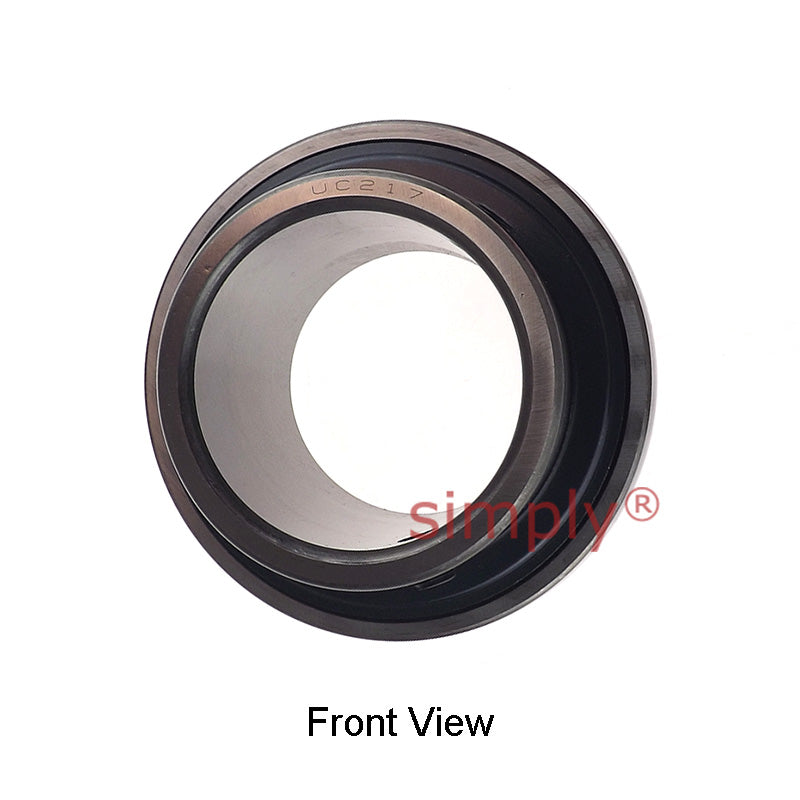

UC217 Metric Bearing Insert with 85mm Bore 150mm Outside Dia
UC217 Metric Bearing Insert with 85mm Bore 150mm Outside Dia
Regular price
$78.06
ex VAT
Regular price
Sale price
$78.06
ex VAT
In stock
Price Break
10+
$69.47
19+
$65.57
29+
$64.79
39+
$64.01
49+
$63.23
74+
$62.45
99+
$58.55
199+
$57.76
249+
$56.98
499+
$56.20
999+
$54.64
Couldn't load pickup availability
Description
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 85mm
- Outside Diameter:
- 150mm
- Style:
- UC
- Type:
- Spherical Outer
Technical
Technical
| d | 85mm |
|---|---|
| D | 150mm |
| Bi | 85mm |
| Be | 35mm |
| n | 34.1mm |
| m | 51.6mm |
| G | 14mm |
| Grub screw | M12x1.5 |
| Weight | 3.45 kg |
| Dynamic load | 6600 kgf |
| Static load | 5320 kgf |
