SKU: UC.218

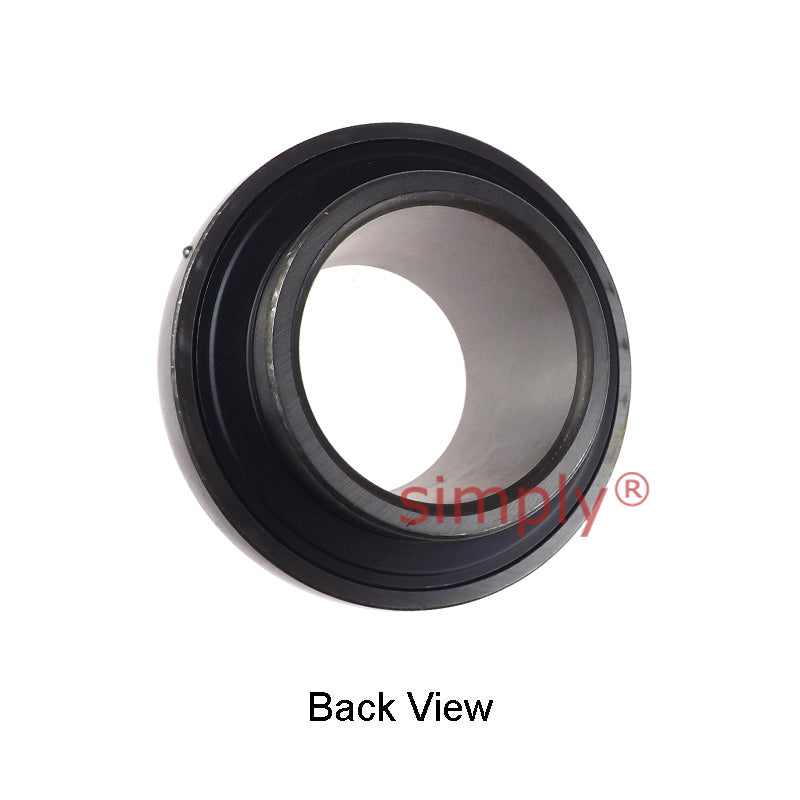

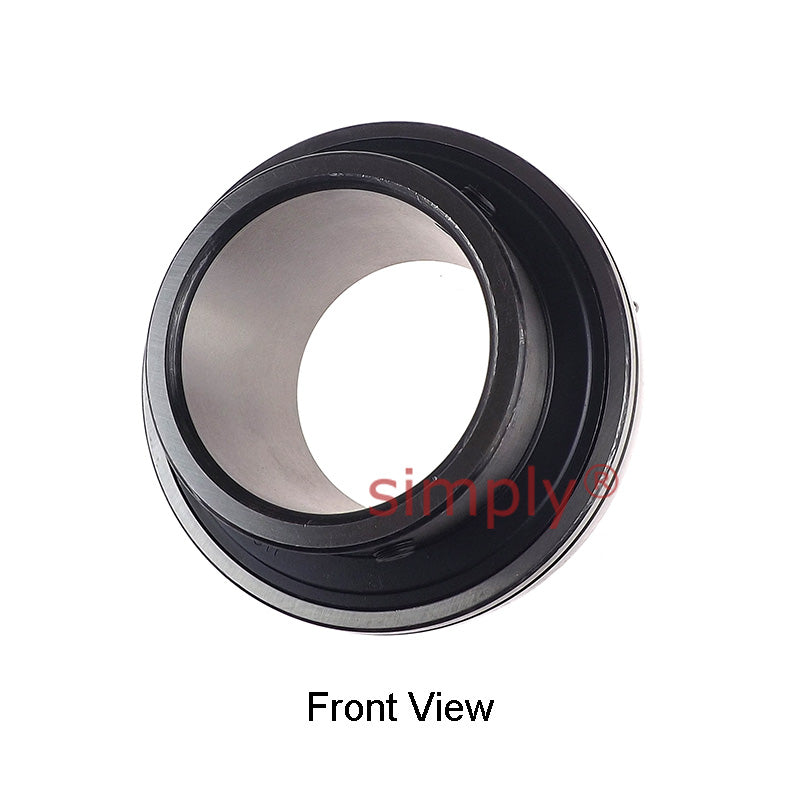

UC218 Metric Bearing Insert with 90mm Bore 160mm Outside Dia
UC218 Metric Bearing Insert with 90mm Bore 160mm Outside Dia
Regular price
$190.57
ex VAT
Regular price
Sale price
$190.57
ex VAT
In stock
Price Break
10+
$169.61
19+
$160.08
29+
$158.17
39+
$156.27
49+
$154.36
74+
$152.46
99+
$142.93
199+
$141.02
249+
$139.12
499+
$137.21
999+
$133.40
Couldn't load pickup availability
Description
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 90mm
- Outside Diameter:
- 160mm
- Style:
- UC
- Type:
- Spherical Outer
Technical
Technical
| d | 90mm |
|---|---|
| D | 160mm |
| Bi | 96mm |
| Be | 37mm |
| n | 39.7mm |
| m | 56.3mm |
| G | 14mm |
| Grub screw | M12x1.5 |
| Weight | 4.35 kg |
| Dynamic load | 7500 kgf |
| Static load | 6170 kgf |
