SKU: UC.308

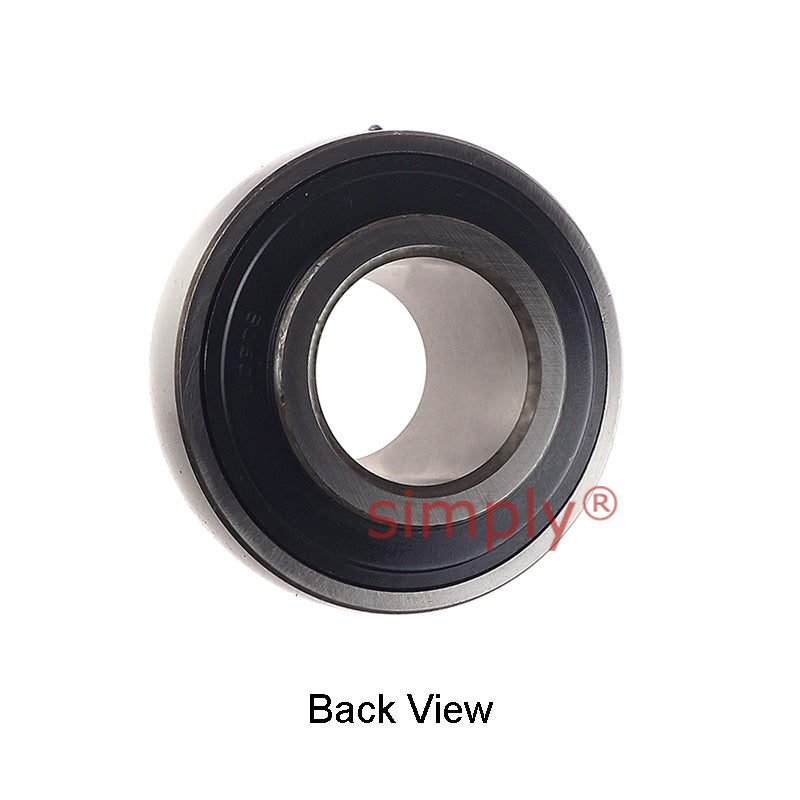

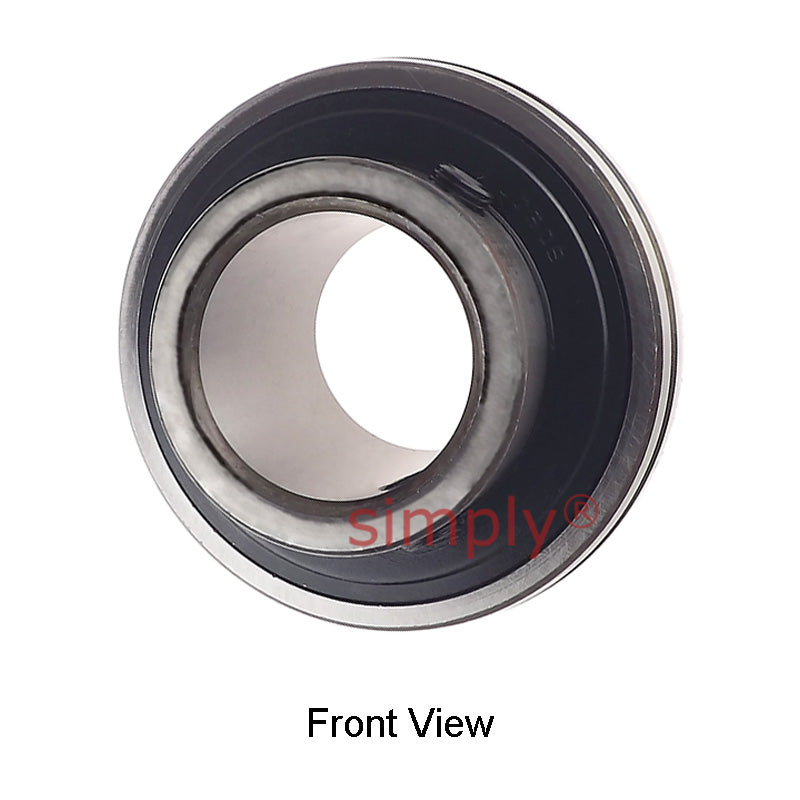

UC308 Heavy Duty Metric Bearing Insert With 40mm Bore 90mm Outside Dia
UC308 Heavy Duty Metric Bearing Insert With 40mm Bore 90mm Outside Dia
Regular price
$19.58
ex VAT
Regular price
Sale price
$19.58
ex VAT
In stock
Price Break
10+
$17.43
19+
$16.45
29+
$16.25
39+
$16.06
49+
$15.86
74+
$15.66
99+
$14.69
199+
$14.49
249+
$14.29
499+
$14.10
999+
$13.71
Description
Description
|
UC300 Series Bearing Insert: Bearing insert with 2 grub screws to allow tightening against the shaft once fitted. These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required. Benefits: Cost effective replacement insert, re-lubricatable, grub screw fixing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 90mm
- Style:
- UC
Technical
Technical
| d | 40mm |
|---|---|
| D | 90mm |
| Bi | 52mm |
| Be | 28mm |
| n | 19mm |
| m | 33mm |
| G | 10mm |
| Grub screw | M10x1.25 |
| Weight | 1.00 kg |
| Dynamic load | 3200 kgf |
| Static load | 2280 kgf |
