SKU: UCC204-12

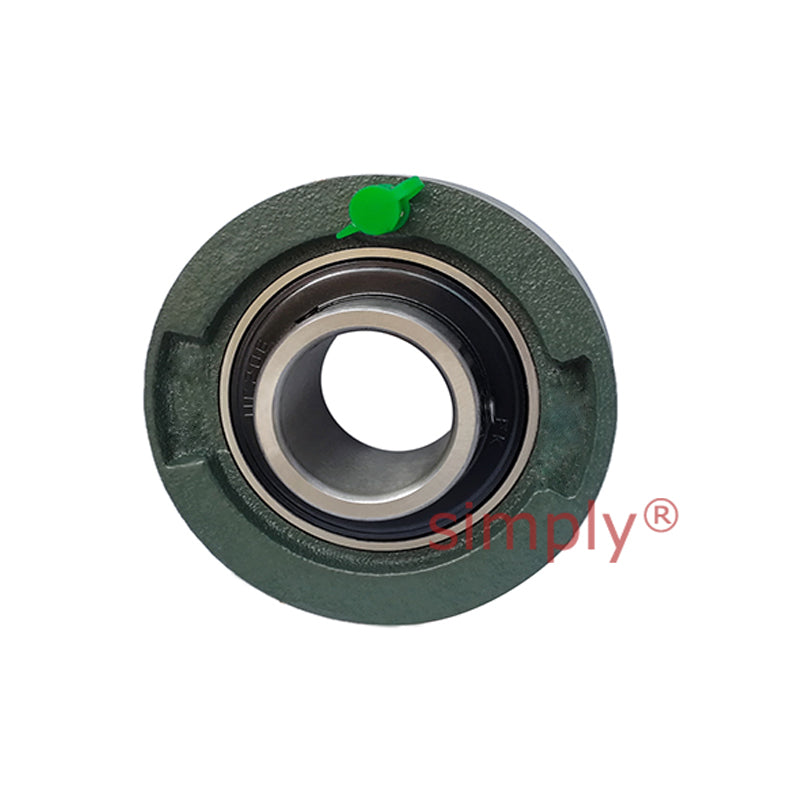

UCC204-12 Imperial Cast Iron Normal Duty Cartridge Unit with 3/4 inch Bore Insert 2.8346 inch Outside Dia
UCC204-12 Imperial Cast Iron Normal Duty Cartridge Unit with 3/4 inch Bore Insert 2.8346 inch Outside Dia
Regular price
$18.67
ex VAT
Regular price
Sale price
$18.67
ex VAT
In stock
Price Break
10+
$16.62
19+
$15.68
29+
$15.50
39+
$15.31
49+
$15.12
74+
$14.94
99+
$14.00
199+
$13.82
249+
$13.63
499+
$13.44
999+
$13.07
Description
Description
UCC Series (Normal Duty) Cartridge Bearing Unit: Cast iron cartridge bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, full width insert
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 19.05mm = 0.75 (3/4) inch
- Outside Diameter:
- 71.999mm = 2.8346 inch
- Style:
- UCC
Technical
Technical
| Bore d | 3/4 inch |
|---|---|
| Outer Dia a | 2.8346 inch |
| g | 25/32 inch |
| r | 0.079 inch |
| B | 1.2205 inch |
| n | 0.5 inch |
| Bearing No | UC204-12 |
| Housing No | C204 |
