SKU: UCC206-19

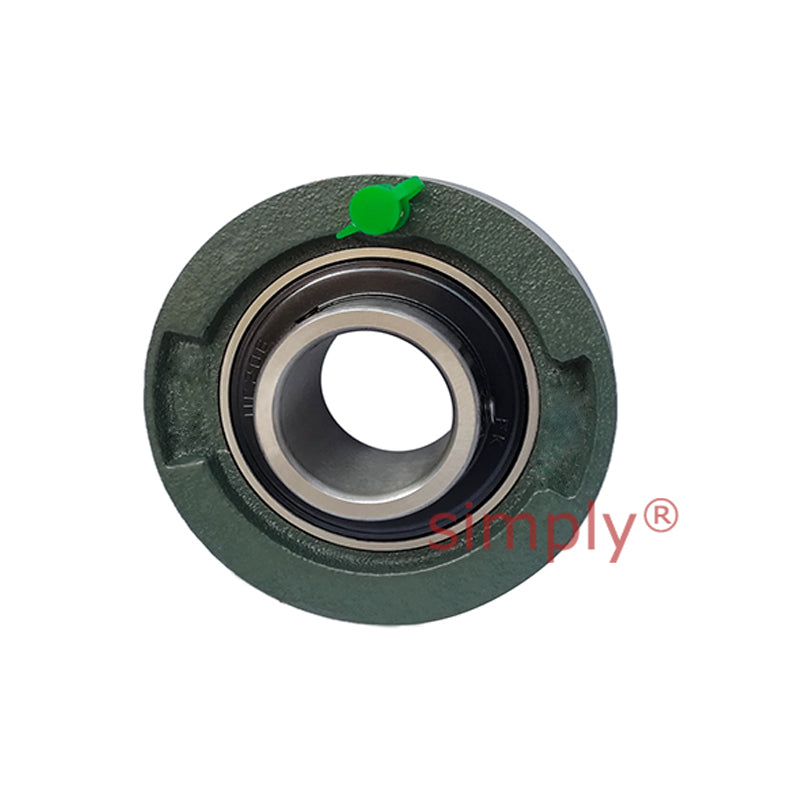

UCC206-19 Imperial Cast Iron Normal Duty Cartridge Unit with 1-3/8 inch Bore Insert 3.3465 inch Outside Dia
UCC206-19 Imperial Cast Iron Normal Duty Cartridge Unit with 1-3/8 inch Bore Insert 3.3465 inch Outside Dia
Regular price
$29.74
ex VAT
Regular price
Sale price
$29.74
ex VAT
In stock
Price Break
10+
$26.47
19+
$24.98
29+
$24.68
39+
$24.39
49+
$24.09
74+
$23.79
99+
$22.31
199+
$22.01
249+
$21.71
499+
$21.41
999+
$20.82
Couldn't load pickup availability
Description
Description
UCC Series (Normal Duty) Cartridge Bearing Unit: Cast iron cartridge bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, full width insert
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 34.93mm = 1.375 (1-3/8) inch
- Outside Diameter:
- 85.001mm = 3.3465 inch
- Style:
- UCC
Technical
Technical
| Bore d | 1-3/8 inch |
|---|---|
| Outer Dia a | 3.3465 inch |
| g | 1-1/16 inch |
| r | 0.079 inch |
| B | 1.500 inch |
| n | 0.626 inch |
| Bearing No | UC206-19 |
| Housing No | C206 |
