SKU: UCC208-24

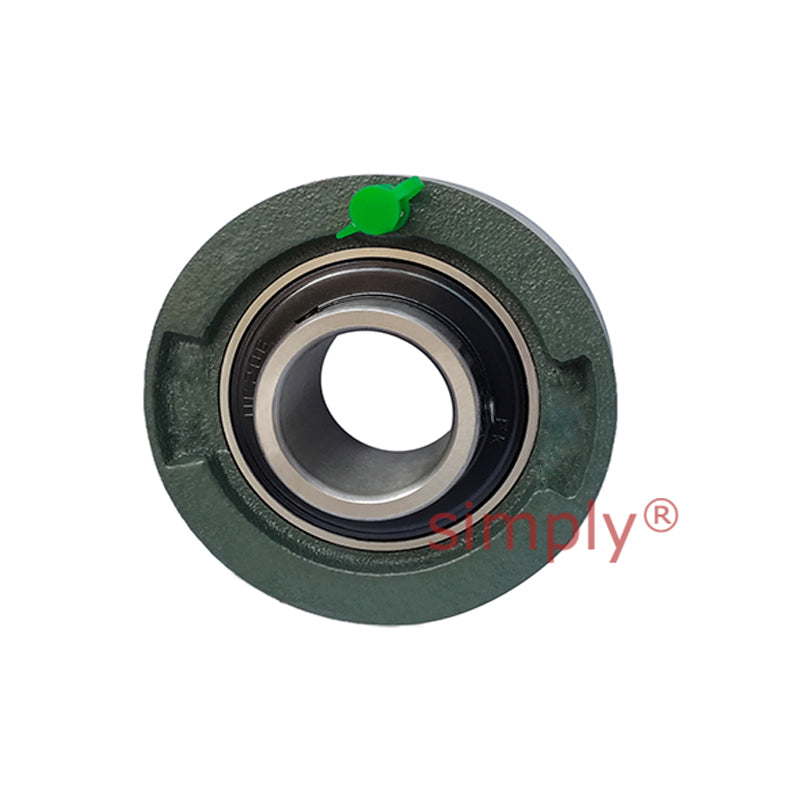

UCC208-24 Imperial Cast Iron Normal Duty Cartridge Unit with 1-1/2 inch Bore Insert 3.937 inch Outside Dia
UCC208-24 Imperial Cast Iron Normal Duty Cartridge Unit with 1-1/2 inch Bore Insert 3.937 inch Outside Dia
Regular price
$30.09
ex VAT
Regular price
Sale price
$30.09
ex VAT
In stock
Price Break
10+
$26.78
19+
$25.28
29+
$24.97
39+
$24.67
49+
$24.37
74+
$24.07
99+
$22.57
199+
$22.27
249+
$21.97
499+
$21.66
999+
$21.06
Description
Description
UCC Series (Normal Duty) Cartridge Bearing Unit: Cast iron cartridge bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, full width insert
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 38.1mm = 1.5 (1-1/2) inch
- Outside Diameter:
- 100.01mm = 3.937(3-15/16) inch
- Style:
- UCC
Technical
Technical
| Bore d | 1-1/2 inch |
|---|---|
| Outer Dia a | 3.937 inch |
| g | 1-3/16 inch |
| r | 0.098 inch |
| B | 1.937 inch |
| n | 0.748 inch |
| Bearing No | UC208-24 |
| Housing No | C208 |
