SKU: UCC20S-15

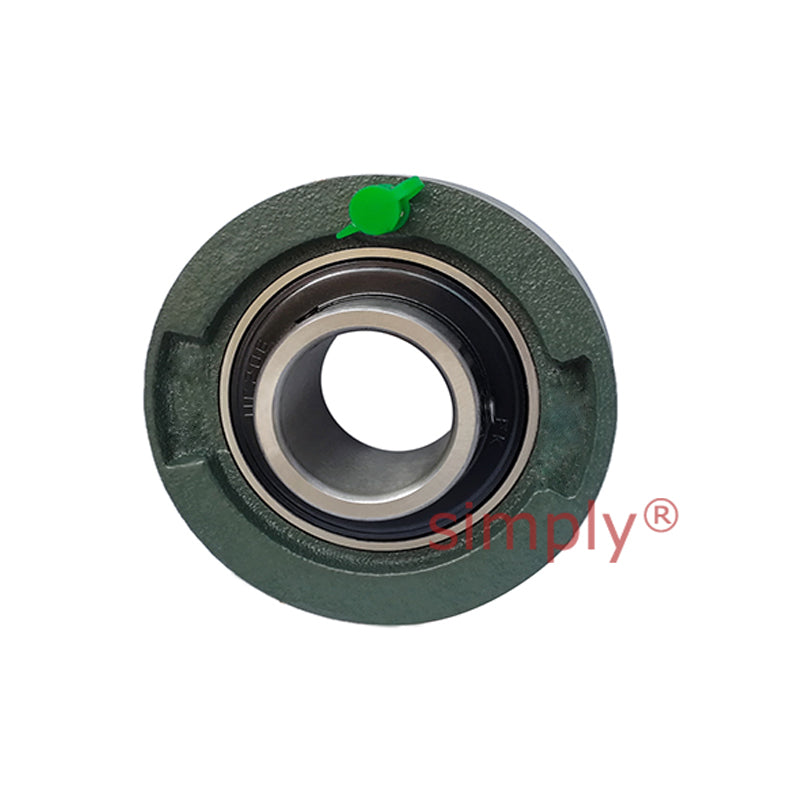

UCC20S-15 Imperial Cast Iron Normal Duty Cartridge Unit with 15/16 inch Bore Insert 3.1496 inch Outside Dia
UCC20S-15 Imperial Cast Iron Normal Duty Cartridge Unit with 15/16 inch Bore Insert 3.1496 inch Outside Dia
Regular price
$25.78
ex VAT
Regular price
Sale price
$25.78
ex VAT
In stock
Price Break
10+
$22.94
19+
$21.66
29+
$21.40
39+
$21.14
49+
$20.88
74+
$20.62
99+
$19.34
199+
$19.08
249+
$18.82
499+
$18.56
999+
$18.05
Description
Description
UCC Series (Normal Duty) Cartridge Bearing Unit: Cast iron cartridge bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, full width insert
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 23.81mm = 0.937 (15/16) inch
- Outside Diameter:
- 80mm = 3.1496 inch
- Style:
- UCC

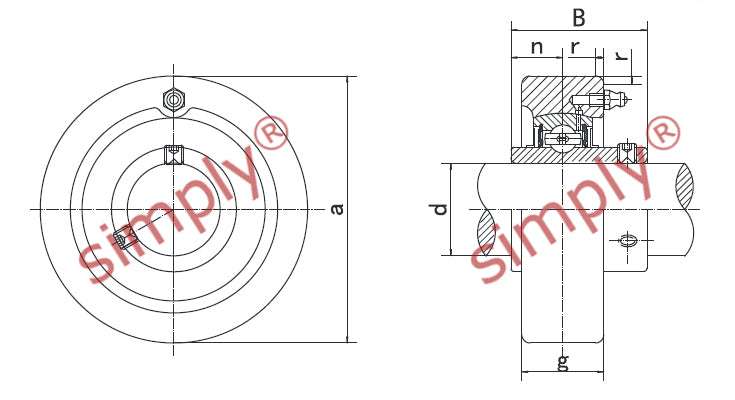

Technical
Technical
| Bore d | 15/16 inch |
|---|---|
| Outer Dia a | 3.1496 inch |
| g | 55/66 inch |
| r | 0.079 inch |
| B | 1.3425 inch |
| n | 0.563 inch |
| Bearing No | UC205-15 UC20S-1S |
| Housing No | C205 |
