SKU: UCC210-32

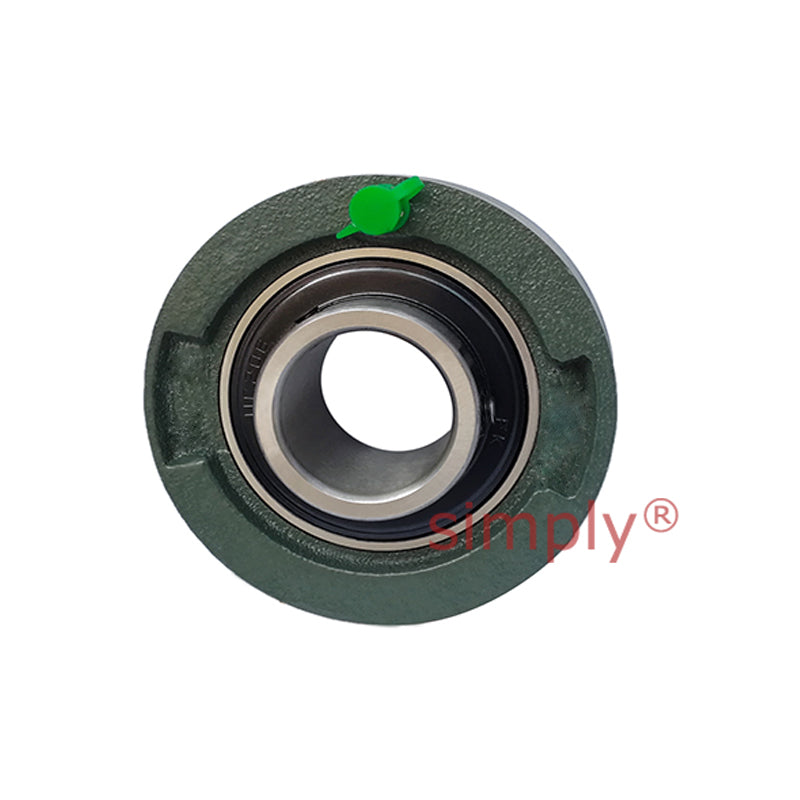

UCC210-32 Imperial Cast Iron Normal Duty Cartridge Unit with 2 inch Bore Insert 4.7244 inch Outside Dia
UCC210-32 Imperial Cast Iron Normal Duty Cartridge Unit with 2 inch Bore Insert 4.7244 inch Outside Dia
Regular price
$52.32
ex VAT
Regular price
Sale price
$52.32
ex VAT
In stock
Price Break
10+
$46.56
19+
$43.95
29+
$43.43
39+
$42.90
49+
$42.38
74+
$41.86
99+
$39.24
199+
$38.72
249+
$38.19
499+
$37.67
999+
$36.62
Description
Description
UCC Series (Normal Duty) Cartridge Bearing Unit: Cast iron cartridge bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, full width insert
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 50.8mm = 2 inch
- Outside Diameter:
- 120mm = 4.7244 inch
- Style:
- UCC
Technical
Technical
| Bore d | 2 inch |
|---|---|
| Outer Dia a | 4.7244 inch |
| g | 1-19/04 inch |
| r | 0.098 inch |
| B | 2.0315 inch |
| n | 0.748 inch |
| Bearing No | UC210-32 |
| Housing No | C210 |
