SKU: UCC213D1-NTN

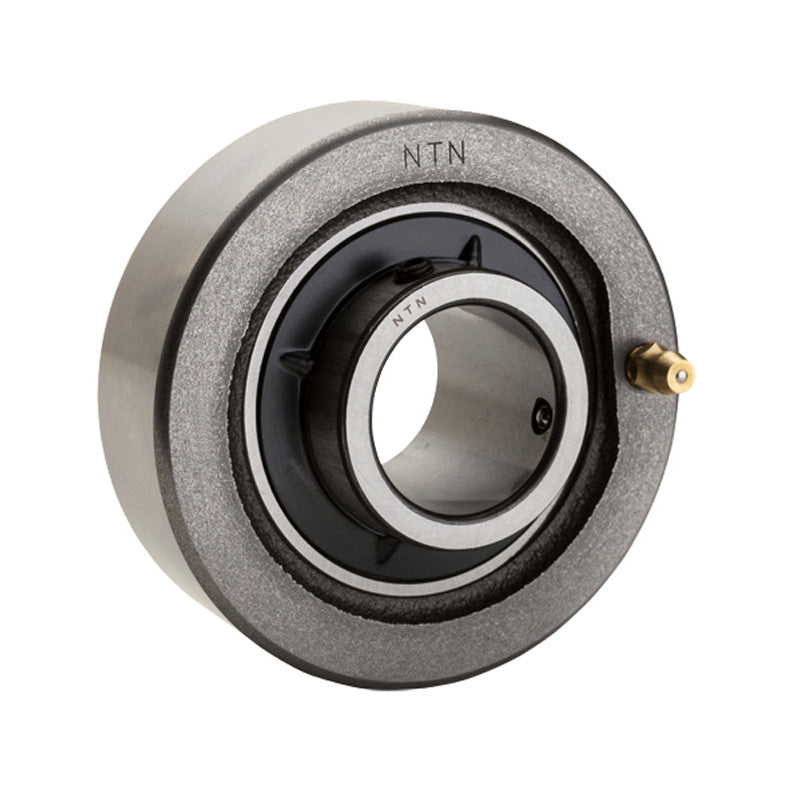

NTN UCC213D1 Metric Cast Iron Cartridge Unit with 65mm Bore Insert 140mm Outside Dia - Allow 2-3 Days
NTN UCC213D1 Metric Cast Iron Cartridge Unit with 65mm Bore Insert 140mm Outside Dia - Allow 2-3 Days
Regular price
$115.48
ex VAT
Regular price
Sale price
$115.48
ex VAT
In stock
Price Break
10+
$102.78
19+
$97.00
29+
$95.85
39+
$94.69
49+
$93.54
74+
$92.38
99+
$86.61
199+
$85.46
249+
$84.30
499+
$83.15
999+
$80.84
Description
Description
UCC Series (Normal Duty) Cartridge Bearing Unit: Cast iron cartridge bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, full width insert
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 65mm
- Style:
- UCC
Technical
Technical
| Shaft diameter | 65mm |
|---|---|
| H | 140mm |
| A | 40mm |
| r | 3mm |
| B | 65.1mm |
| S | 25.4mm |
| Mass | 3 kg |
