SKU: UCC310-SNR
SNR UCC310 Metric Cast Iron Cartridge Unit with 50mm Bore Insert 40mm Outside Dia - Allow 2-3 Days
SNR UCC310 Metric Cast Iron Cartridge Unit with 50mm Bore Insert 40mm Outside Dia - Allow 2-3 Days
Regular price
$178.32
ex VAT
Regular price
Sale price
$178.32
ex VAT
In stock
Price Break
5+
$176.54
10+
$169.40
20+
$165.84
50+
$160.49
100+
$156.92
500+
$148.01
1000+
$124.82
Description
Description

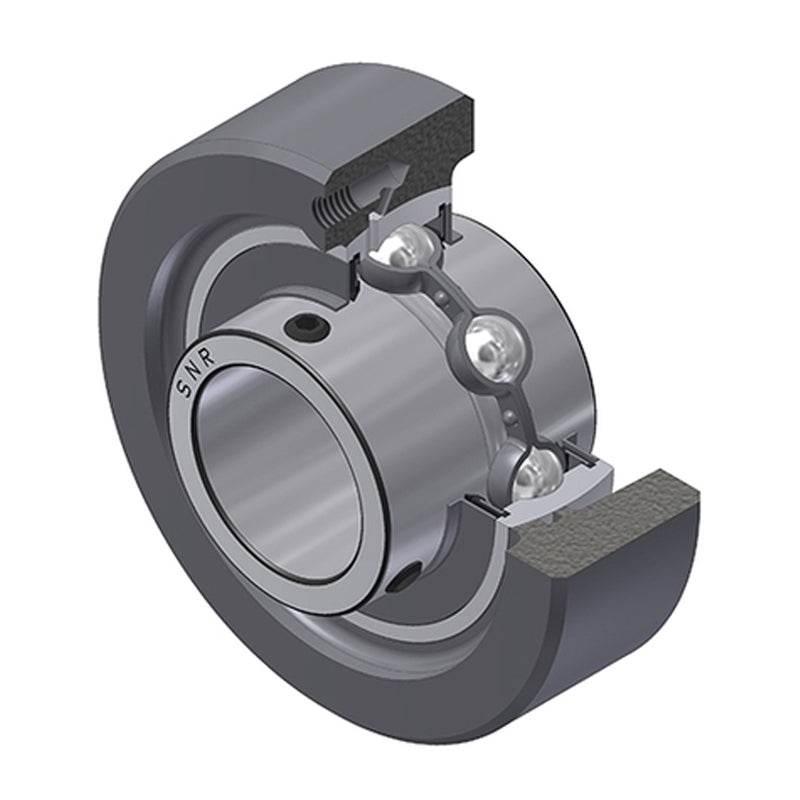

UCC Series (Normal Duty) Cartridge Bearing Unit: Cast iron cartridge bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, full width insert
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 50mm
- Style:
- UCC
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 50mm |
| A | 40mm |
| A3 | 2.5mm |
| B | 61mm |
| H | 140mm |
| S | 22mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 62 kN |
| Static load C0 | 37.8 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Mass | 3.35 kg |
