SKU: UCF.202.TS.CHAL

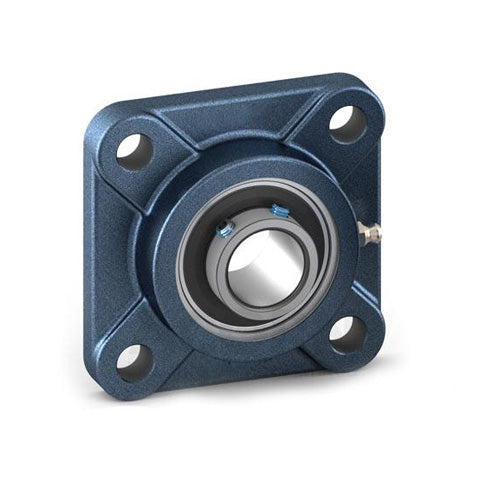

Challenge / FK UCF202 Metric Cast Iron Four Bolt Square Flange Housing with 15mm Bore Insert and Triple Lip Seal Ideal for Agricultural and Outdoor Use
Challenge / FK UCF202 Metric Cast Iron Four Bolt Square Flange Housing with 15mm Bore Insert and Triple Lip Seal Ideal for Agricultural and Outdoor Use
Regular price
$32.22
ex VAT
Regular price
Sale price
$32.22
ex VAT
Equivalent to: UCF.202
In stock
Price Break
10+
$28.68
19+
$27.06
29+
$26.74
39+
$26.42
49+
$26.10
74+
$25.78
99+
$24.17
199+
$23.84
249+
$23.52
499+
$23.20
999+
$22.55
Description
Description
UCF Cast Iron Four Bolt Square Flange Housing: These normal-dutybearing units are fitted with a triple lip seal in a cast iron housing and includes a grease nipple to facilitate re-lubrication. These bearings are perfect for agricultural applications where the bearings are exposed to contamination. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: High tolerance to harsh environments, cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Equivalent: UCF.202
- Brand / Quality:
- Challenge / FK - Good Quality
- Inside Diameter:
- 15mm
- Style:
- UCF
- Bolt Hole Centres:
- 64mm
Technical
Technical
| Shaft Diameter d | 15mm |
|---|---|
| Width a | 86mm |
| Recommended Bolt Centres L | 64mm |
| Back of Casting to Centre Line of Bearing i | 15mm |
| Depth of Casting at Bolt g | 12mm |
| Overall Casting Height l | 25.5mm |
| Bolt Hole Diameter s | 12mm |
| Back of Casting to Bearing Front z | 33.3mm |
| Bearing Insert Width Bi | 31mm |
| Back of Bearing to Centre Line n | 12.7mm |
| Working Temperature | -30°C to +120°C |
| Insert No | UC202 |
| Housing No | F202 |
