SKU: UCF.206.TS.CHAL

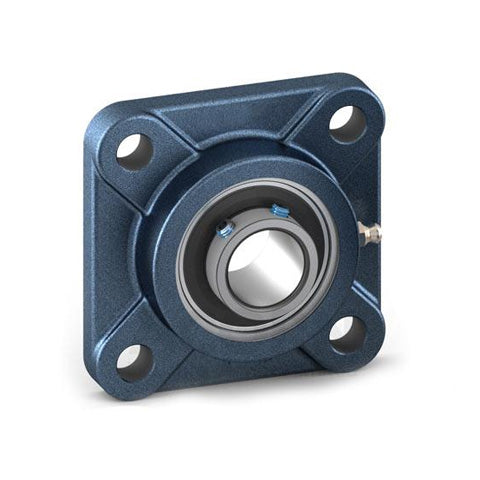

Challenge / FK UCF206 Metric Cast Iron Four Bolt Square Flange Housing with 30mm Bore Insert and Triple Lip Seal Ideal for Agricultural and Outdoor Use
Challenge / FK UCF206 Metric Cast Iron Four Bolt Square Flange Housing with 30mm Bore Insert and Triple Lip Seal Ideal for Agricultural and Outdoor Use
Regular price
$41.75
ex VAT
Regular price
Sale price
$41.75
ex VAT
Equivalent to: UCF.206
In stock
Price Break
10+
$37.16
19+
$35.07
29+
$34.65
39+
$34.24
49+
$33.82
74+
$33.40
99+
$31.31
199+
$30.90
249+
$30.48
499+
$30.06
999+
$29.23
Description
Description
UCF Cast Iron Four Bolt Square Flange Housing: These normal-dutybearing units are fitted with a triple lip seal in a cast iron housing and includes a grease nipple to facilitate re-lubrication. These bearings are perfect for agricultural applications where the bearings are exposed to contamination. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: High tolerance to harsh environments, cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Equivalent: UCF.206
- Brand / Quality:
- Challenge / FK - Good Quality
- Inside Diameter:
- 30mm
- Style:
- UCF
- Bolt Hole Centres:
- 83mm
Technical
Technical
| Shaft Diameter d | 30mm |
|---|---|
| Width a | 108mm |
| Recommended Bolt Centres L | 83mm |
| Back of Casting to Centre Line of Bearing i | 18mm |
| Depth of Casting at Bolt g | 14mm |
| Overall Casting Height l | 31mm |
| Bolt Hole Diameter s | 12mm |
| Back of Casting to Bearing Front z | 40.2mm |
| Bearing Insert Width Bi | 38.1mm |
| Back of Bearing to Centre Line n | 15.9mm |
| Bolt Size | M10 |
| Grub Screws x 2 | M6x0.75mm |
| Load Rating (Dynamic) | 1520kg |
| Load Rating (Static) | 1020kg |
| Max Speed | 2800 rev/min |
| Grease Nipple Thread Size | M6 |
| Working Temperature | -30°C to +120°C |
| Insert No | UC206 |
| Housing No | F206 |
