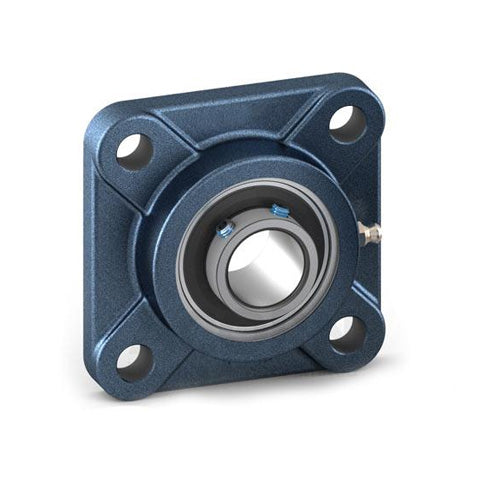

Challenge / FK UCF216 Metric Cast Iron Four Bolt Square Flange Housing with 80mm Bore Insert and Triple Lip Seal Ideal for Agricultural and Outdoor Use
Challenge / FK UCF216 Metric Cast Iron Four Bolt Square Flange Housing with 80mm Bore Insert and Triple Lip Seal Ideal for Agricultural and Outdoor Use
Regular price
$381.14
ex VAT
Regular price
Sale price
$381.14
ex VAT
Equivalent to: UCF.216
In stock
Price Break
10+
$339.21
19+
$320.16
29+
$316.35
39+
$312.53
49+
$308.72
74+
$304.91
99+
$285.86
199+
$282.04
249+
$278.23
499+
$274.42
999+
$266.80
Description
Description
UCF Cast Iron Four Bolt Square Flange Housing: These normal-dutybearing units are fitted with a triple lip seal in a cast iron housing and includes a grease nipple to facilitate re-lubrication. These bearings are perfect for agricultural applications where the bearings are exposed to contamination. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: High tolerance to harsh environments, cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Equivalent: UCF.216
- Brand / Quality:
- Challenge / FK - Good Quality
- Inside Diameter:
- 80mm
- Style:
- UCF
- Bolt Hole Centres:
- 165mm
Technical
Technical
| Shaft Diameter d | 80mm |
|---|---|
| Width a | 208mm |
| Recommended Bolt Centres L | 165mm |
| Back of Casting to Centre Line of Bearing i | 34mm |
| Depth of Casting at Bolt g | 22mm |
| Overall Casting Height l | 58mm |
| Bolt Hole Diameter s | 23mm |
| Back of Casting to Bearing Front z | 83.3mm |
| Bearing Insert Width Bi | 82.6mm |
| Back of Bearing to Centre Line n | 33.3mm |
| Bolt Size | M20 |
| Grub Screws x 2 | M12x1.50mm |
| Load Rating (Dynamic) | 5700kg |
| Load Rating (Static) | 4550kg |
| Max Speed | 1100 rev/min |
| Grease Nipple Thread Size | M10 |
| Working Temperature | -30°C to +120°C |
| Insert No | UC216 |
| Housing No | F216 |
