SKU: UCFA.204

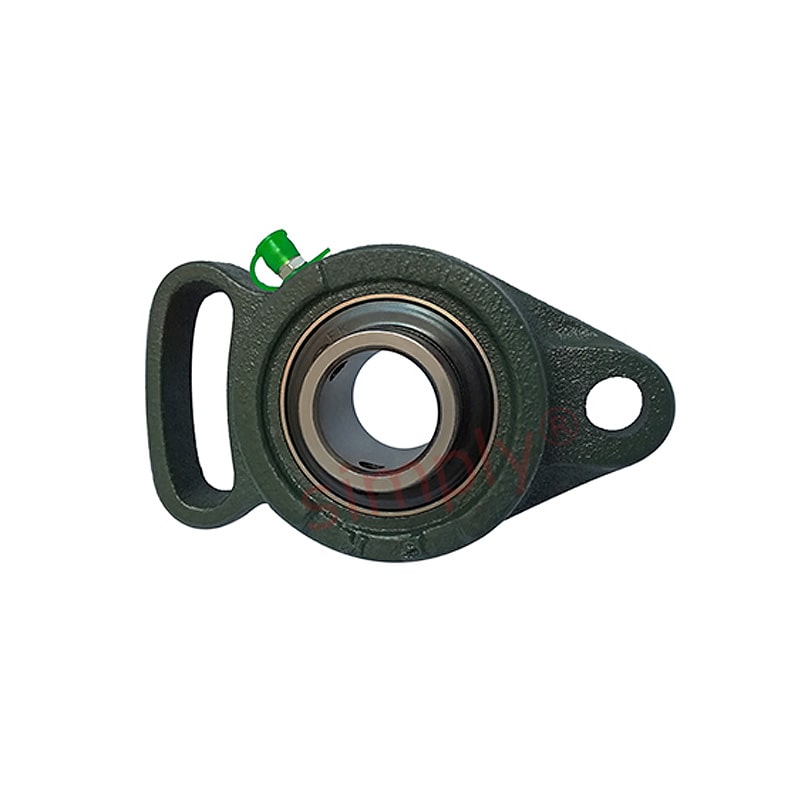

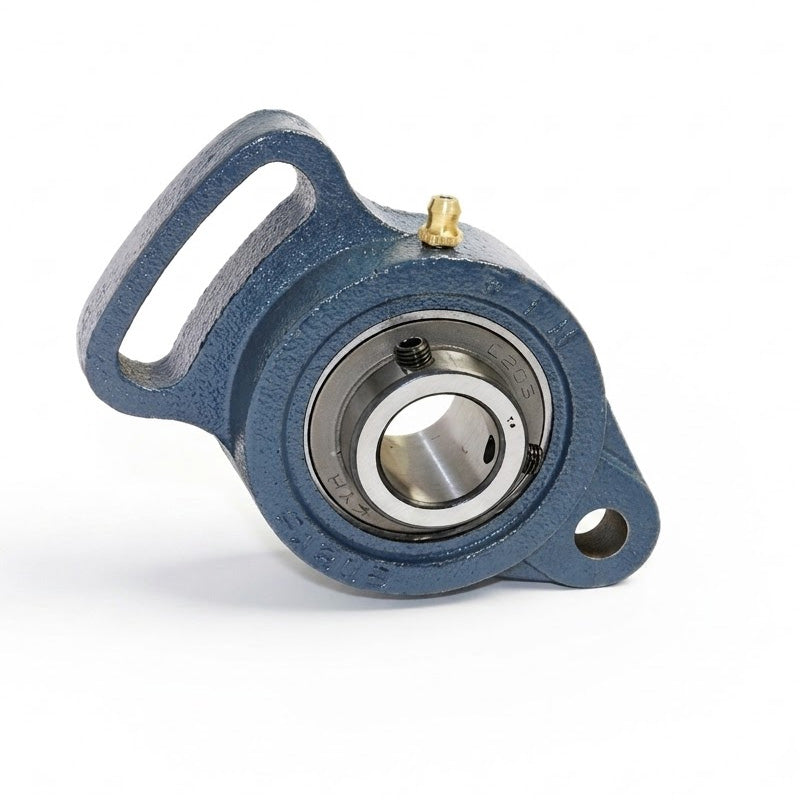

UCFA204 Metric Cast Iron Adjustable Flange Unit with 20mm Insert
UCFA204 Metric Cast Iron Adjustable Flange Unit with 20mm Insert
Regular price
$11.92
ex VAT
Regular price
Sale price
$11.92
ex VAT
In stock
Price Break
10+
$10.61
19+
$10.01
29+
$9.89
39+
$9.77
49+
$9.66
74+
$9.54
99+
$8.94
199+
$8.82
249+
$8.70
499+
$8.58
999+
$8.34
Description
Description
UCFA200 Series Normal Duty Adjustable Flange Units: These bearing units are supplied with a fully sealed bearing insert fitted in the adjustable flange housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 20mm
- Style:
- UCFA
- Bolt Hole Centres:
- 78.18mm = 3.078 (3-5/64) inch
Technical
Technical
| d | 20mm |
|---|---|
| a | 3-55/64 inch |
| e | 3-5/64 inch |
| i | 19/32 inch |
| g | 15/32 inch |
| l | 1 inch |
| s | 25/64 inch |
| b | 2-3/8 inch |
| z | 1-5/16 inch |
| f | 1-37/64 inch |
| c | 1-31/32 inch |
| B | 1.2205 inch |
| n | 0.5 inch |
| Bolt size | 5/16 inch |
| Bearing no | UC204 |
| Housing no | FA204 |
| Weight | 0.42 kg |
