SKU: UCFA201
UCFA201 Metric Cast Iron Adjustable Flange Unit with 12mm Insert
UCFA201 Metric Cast Iron Adjustable Flange Unit with 12mm Insert
Regular price
$19.75
ex VAT
Regular price
Sale price
$19.75
ex VAT
In stock
Price Break
10+
$17.58
19+
$16.59
29+
$16.39
39+
$16.20
49+
$16.00
74+
$15.80
99+
$14.81
199+
$14.62
249+
$14.42
499+
$14.22
999+
$13.83
Couldn't load pickup availability
Description
Description
UCFA200 Series Normal Duty Adjustable Flange Units: These bearing units are supplied with a fully sealed bearing insert fitted in the adjustable flange housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 12mm
- Style:
- UCFA
- Bolt Hole Centres:
- 78mm

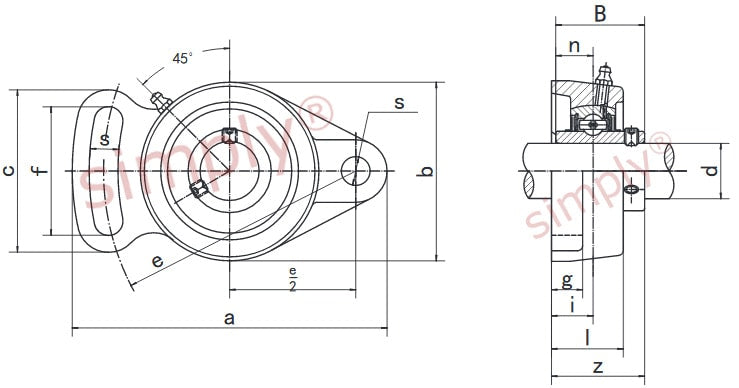

Technical
Technical
| d | 12mm |
|---|---|
| a | 98mm |
| e | 78mm |
| i | 15mm |
| g | 12mm |
| l | 25.5mm |
| s | 10mm |
| b | 60mm |
| z | 33.3mm |
| f | 40mm |
| c | 50mm |
| B | 31mm |
| n | 12.7mm |
| Bolt size | M8 |
| Bearing no | UC201 |
| Housing no | FA201 |
| Weight | 0.46 kg |
