SKU: UCFA208-SNR

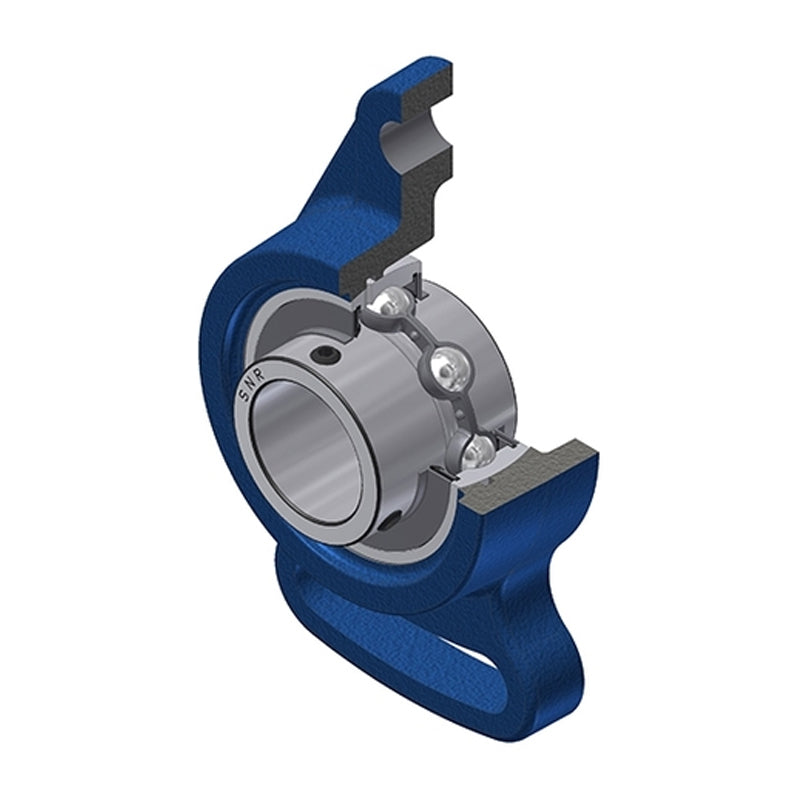

SNR UCFA208 Metric Cast Iron Adjustable Flange Unit with 40mm Insert - Allow 2-3 Days
SNR UCFA208 Metric Cast Iron Adjustable Flange Unit with 40mm Insert - Allow 2-3 Days
Regular price
$53.62
ex VAT
Regular price
Sale price
$53.62
ex VAT
In stock
Price Break
10+
$47.72
19+
$45.04
29+
$44.50
39+
$43.97
49+
$43.43
74+
$42.90
99+
$40.22
199+
$39.68
249+
$39.14
499+
$38.61
999+
$37.53
Couldn't load pickup availability
Description
Description
UCFA200 Series Normal Duty Adjustable Flange Units: These bearing units are supplied with a fully sealed bearing insert fitted in the adjustable flange housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 40mm
- Style:
- UCFA
- Bolt Hole Centres:
- 144mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 40mm |
| A | 36mm |
| A1 | 16mm |
| A2 | 51.2mm |
| B | 49.2mm |
| e | 21mm |
| H | 175mm |
| J | 144mm |
| J1 | 71mm |
| L | 100mm |
| L1 | 87mm |
| N | 15mm |
| S | 19mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 29.6 kN |
| Static load C0 | 18.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 11.5 Nm |
| Mass | 1.64 kg |
