SKU: UCFB.208

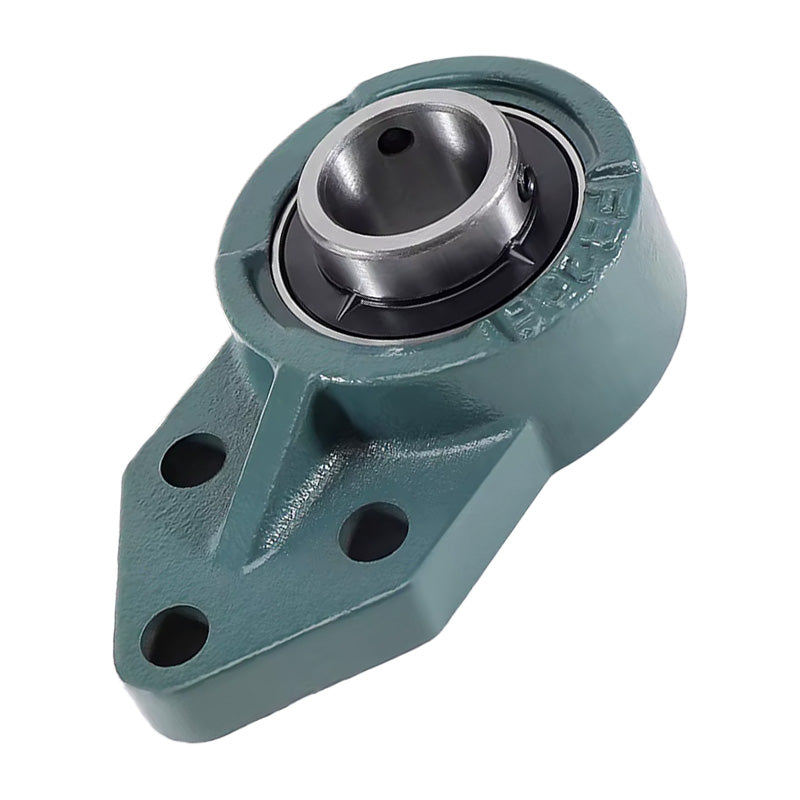

UCFB208 Metric 3 Bolt Cast Iron Bracket Flange Bearing 40mm Bore
UCFB208 Metric 3 Bolt Cast Iron Bracket Flange Bearing 40mm Bore
Regular price
$29.93
ex VAT
Regular price
Sale price
$29.93
ex VAT
In stock
Price Break
10+
$26.64
19+
$25.14
29+
$24.84
39+
$24.54
49+
$24.24
74+
$23.94
99+
$22.45
199+
$22.15
249+
$21.85
499+
$21.55
999+
$20.95
Couldn't load pickup availability
Description
Description
UCFB200 Series Normal Duty 3 Bolt Bracket Flange Units: These bearing units are supplied with a fully sealed bearing insert fitted in the flange housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 40mm
- Style:
- UCFB
- Bolt Hole Centres:
- 50mm
Technical
Technical
| d | 40mm |
|---|---|
| w | 164mm |
| b | 100mm |
| k | 72mm |
| a | 78mm |
| l | 36mm |
| s | 12mm |
| g | 16mm |
| h | 60mm |
| j | 41mm |
| e | 50mm |
| i | 21mm |
| z | 51.2mm |
| B | 49.2mm |
| n | 19mm |
| Bolt size | M10 |
| Bearing no | UC208 |
| Housing no | FB208 |
| Weight | 1.661 kg |
