SKU: UCFB201-8

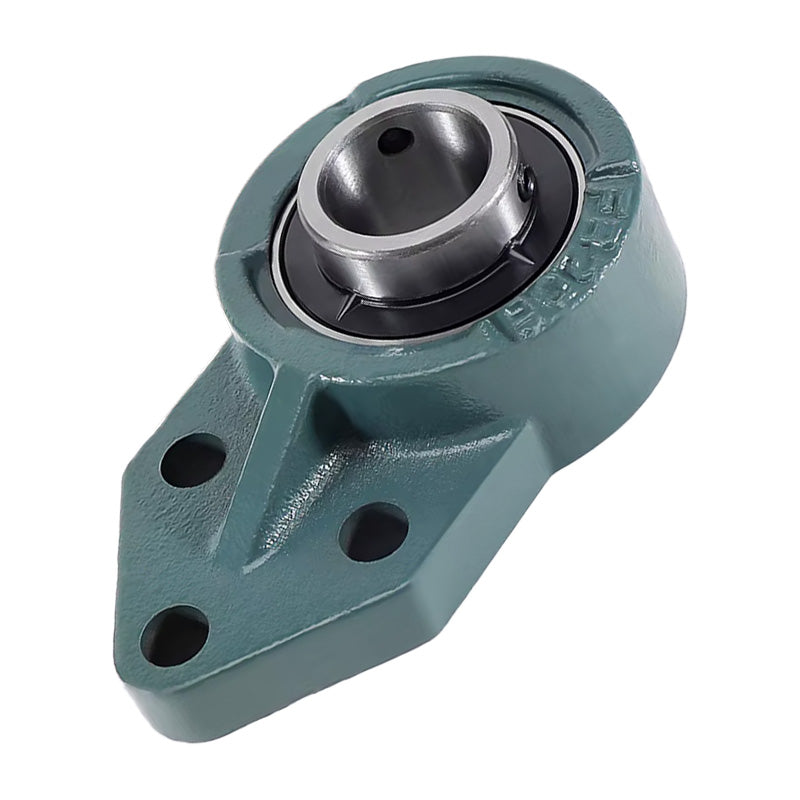

UCFB201-8 Imperial 3 Bolt Cast Iron Bracket Flange Bearing 1/2 inch Bore
UCFB201-8 Imperial 3 Bolt Cast Iron Bracket Flange Bearing 1/2 inch Bore
Regular price
$14.01
ex VAT
Regular price
Sale price
$14.01
ex VAT
In stock
Price Break
10+
$12.47
19+
$11.77
29+
$11.63
39+
$11.49
49+
$11.35
74+
$11.21
99+
$10.51
199+
$10.37
249+
$10.23
499+
$10.09
999+
$9.81
Description
Description
UCFB200 Series Normal Duty 3 Bolt Bracket Flange Units: These bearing units are supplied with a fully sealed bearing insert fitted in the flange housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 12.7mm = 0.5 (1/2) inch
- Style:
- UCFB
- Bolt Hole Centres:
- 32.15mm = 1.266 (1-17/64) inch
Technical
Technical
| d | 1/2 inch |
|---|---|
| w | 4-11/32 inch |
| b | 2-7/16 inch |
| k | 2-1/16 inch |
| a | 2-1/16 inch |
| l | 1 inch |
| s | 25/64 inch |
| g | 1/2 inch |
| h | 1-21/32 inch |
| j | 1-1/16 inch |
| e | 1-17/64 inch |
| i | 19/32 inch |
| z | 1-5/16 inch |
| B | 1.2205 inch |
| n | 0.5 inch |
| Bolt size | 5/16 inch |
| Bearing no | UC201-8 |
| Housing no | FB201 |
| Weight | 0.577 kg |
