SKU: UCFB202

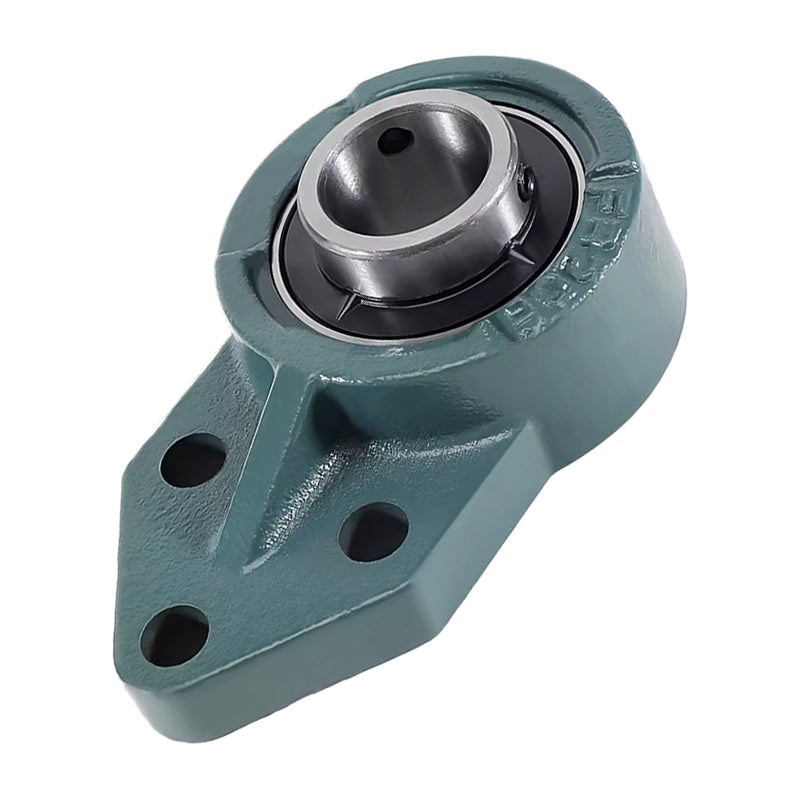

UCFB202 Metric 3 Bolt Cast Iron Bracket Flange Bearing 15mm Bore
UCFB202 Metric 3 Bolt Cast Iron Bracket Flange Bearing 15mm Bore
Regular price
$14.09
ex VAT
Regular price
Sale price
$14.09
ex VAT
In stock
Price Break
10+
$12.54
19+
$11.84
29+
$11.69
39+
$11.55
49+
$11.41
74+
$11.27
99+
$10.57
199+
$10.43
249+
$10.29
499+
$10.14
999+
$9.86
Description
Description
UCFB200 Series Normal Duty 3 Bolt Bracket Flange Units: These bearing units are supplied with a fully sealed bearing insert fitted in the flange housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 15mm
- Style:
- UCFB
- Bolt Hole Centres:
- 32.15mm = 1.266 (1-17/64) inch
Technical
Technical
| d | 15mm |
|---|---|
| w | 4-11/32 inch |
| b | 2-7/16 inch |
| k | 2-1/16 inch |
| a | 2-1/16 inch |
| l | 1 inch |
| s | 25/64 inch |
| g | 1/2 inch |
| h | 1-21/32 inch |
| j | 1-1/16 inch |
| e | 1-17/64 inch |
| i | 19/32 inch |
| z | 1-5/16 inch |
| B | 1.2205 inch |
| n | 0.5 inch |
| Bolt size | 5/16 inch |
| Bearing no | UC202 |
| Housing no | FB202 |
| Weight | 0.577 kg |
