SKU: UCFB203

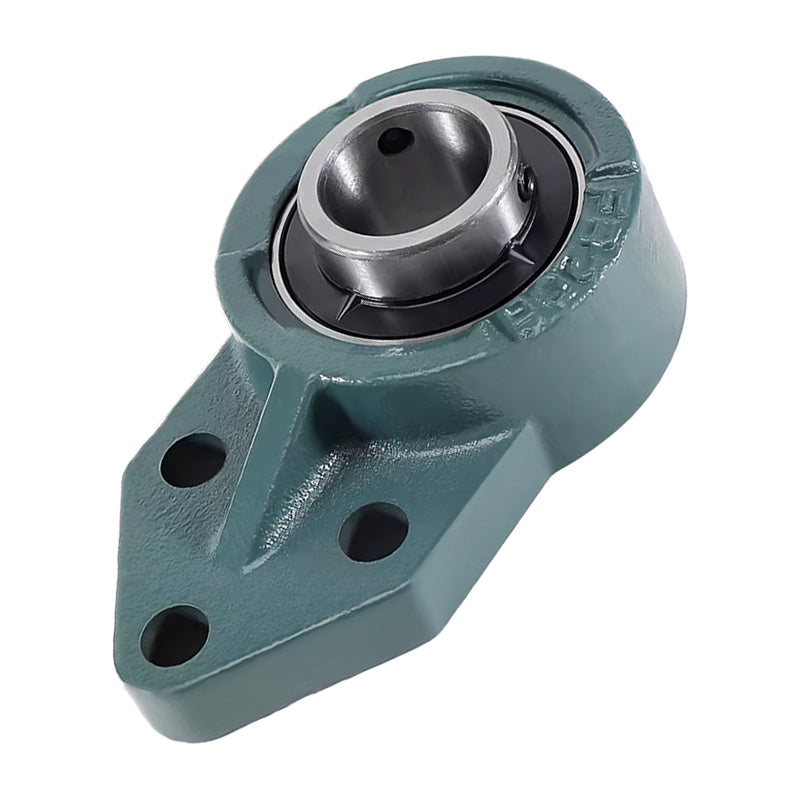

UCFB203 Metric 3 Bolt Cast Iron Bracket Flange Bearing 17mm Bore
UCFB203 Metric 3 Bolt Cast Iron Bracket Flange Bearing 17mm Bore
Regular price
$22.02
ex VAT
Regular price
Sale price
$22.02
ex VAT
In stock
Price Break
10+
$19.60
19+
$18.50
29+
$18.28
39+
$18.06
49+
$17.84
74+
$17.62
99+
$16.52
199+
$16.29
249+
$16.07
499+
$15.85
999+
$15.41
Description
Description
UCFB200 Series Normal Duty 3 Bolt Bracket Flange Units: These bearing units are supplied with a fully sealed bearing insert fitted in the flange housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 17mm
- Style:
- UCFB
- Bolt Hole Centres:
- 32.15mm = 1.266 (1-17/64) inch
Technical
Technical
| d | 17mm |
|---|---|
| w | 110mm |
| b | 62mm |
| k | 52mm |
| a | 52mm |
| l | 25.5mm |
| s | 10mm |
| g | 13mm |
| h | 1-21/32 inch |
| j | 1-1/16 inch |
| e | 1-17/64 inch |
| i | 19/32 inch |
| z | 1-5/16 inch |
| B | 1.2205 inch |
| n | 0.5 inch |
| Bolt size | 5/16 inch |
| Bearing no | UC203 |
| Housing no | FB203 |
| Weight | 0.567 kg |
