SKU: UCFB205-16

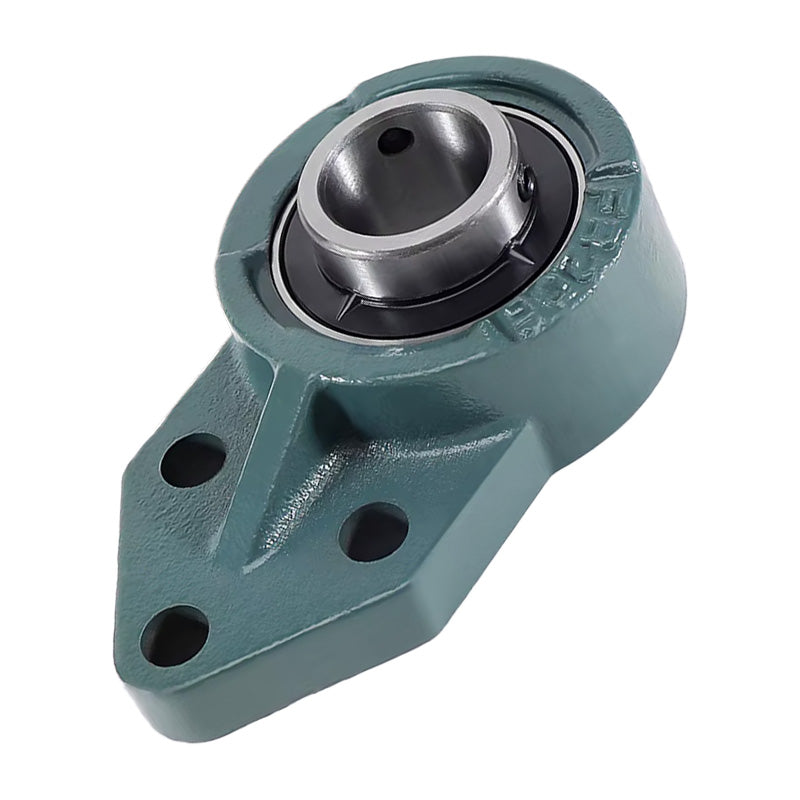

UCFB205-16 Imperial 3 Bolt Cast Iron Bracket Flange Bearing 1 inch Bore
UCFB205-16 Imperial 3 Bolt Cast Iron Bracket Flange Bearing 1 inch Bore
Regular price
$15.17
ex VAT
Regular price
Sale price
$15.17
ex VAT
In stock
Price Break
10+
$13.50
19+
$12.74
29+
$12.59
39+
$12.44
49+
$12.29
74+
$12.14
99+
$11.38
199+
$11.23
249+
$11.07
499+
$10.92
999+
$10.62
Description
Description
UCFB200 Series Normal Duty 3 Bolt Bracket Flange Units: These bearing units are supplied with a fully sealed bearing insert fitted in the flange housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 25.4mm = 1 inch
- Style:
- UCFB
- Bolt Hole Centres:
- 34.13mm = 1.344 (1-11/32) inch
Technical
Technical
| d | 1 inch |
|---|---|
| w | 4-9/16 inch |
| b | 2-11/16 inch |
| k | 2-1/16 inch |
| a | 2-7/32 inch |
| l | 1-1/16 inch |
| s | 25/64 inch |
| g | 1/2 inch |
| h | 1-49/64 inch |
| j | 1-1/16 inch |
| e | 1-11/32 inch |
| i | 5/8 inch |
| z | 1-13/32 inch |
| B | 1.3425 inch |
| n | 0.563 inch |
| Bolt size | 5/16 inch |
| Bearing no | UC205-16 |
| Housing no | FB205 |
| Weight | 0.634 kg |
