SKU: UCFB209

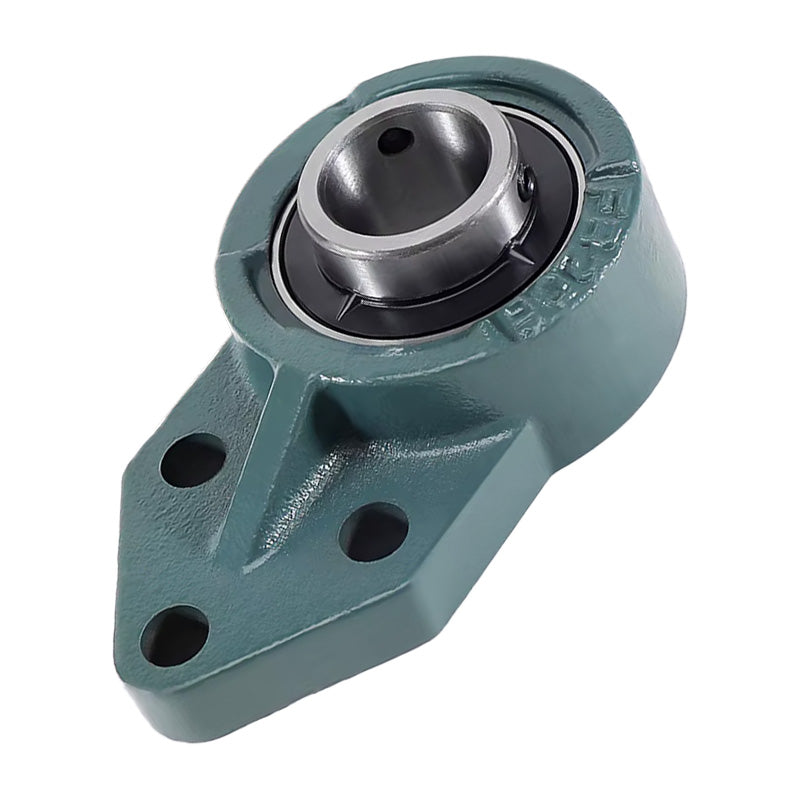

UCFB209 Metric 3 Bolt Cast Iron Bracket Flange Bearing 45mm Bore
UCFB209 Metric 3 Bolt Cast Iron Bracket Flange Bearing 45mm Bore
Regular price
$33.01
ex VAT
Regular price
Sale price
$33.01
ex VAT
In stock
Price Break
10+
$29.38
19+
$27.73
29+
$27.40
39+
$27.07
49+
$26.74
74+
$26.41
99+
$24.76
199+
$24.43
249+
$24.10
499+
$23.77
999+
$23.11
Couldn't load pickup availability
Description
Description
UCFB200 Series Normal Duty 3 Bolt Bracket Flange Units: These bearing units are supplied with a fully sealed bearing insert fitted in the flange housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 45mm
- Style:
- UCFB
- Bolt Hole Centres:
- 54mm
Technical
Technical
| d | 45mm |
|---|---|
| w | 174mm |
| b | 106mm |
| k | 76mm |
| a | 80mm |
| l | 38mm |
| s | 12mm |
| g | 18mm |
| h | 65mm |
| j | 43mm |
| e | 54mm |
| i | 22mm |
| z | 52.2mm |
| B | 49.2mm |
| n | 19mm |
| Bolt size | M10 |
| Bearing no | UC209 |
| Housing no | FB209 |
| Weight | 1.924 kg |
