SKU: UCFC.209

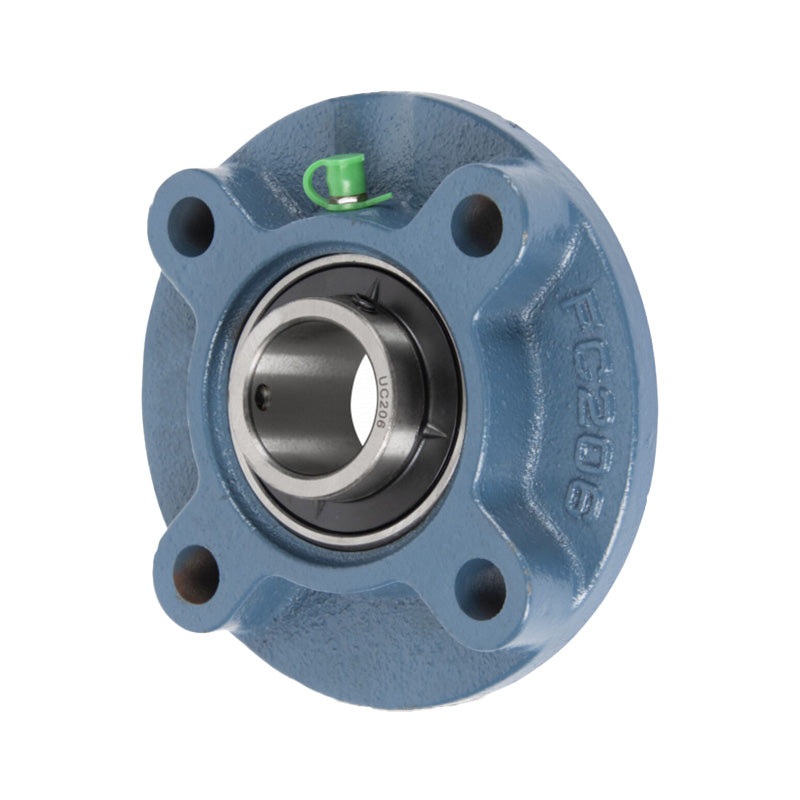

UCFC209 Metric Four Bolt Cast Iron Round Flanged Housing with 45mm Insert
UCFC209 Metric Four Bolt Cast Iron Round Flanged Housing with 45mm Insert
Regular price
$40.51
ex VAT
Regular price
Sale price
$40.51
ex VAT
In stock
Price Break
10+
$36.05
19+
$34.03
29+
$33.62
39+
$33.22
49+
$32.81
74+
$32.41
99+
$30.38
199+
$29.98
249+
$29.57
499+
$29.17
999+
$28.36
Description
Description
|
UCFC Series 4 Bolt Round Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the round cast iron housing and includes a grease nipple to facilitate re-lubrication, this style has the benefit of a shouldered back face to facilitate location of the housing prior to fastening in place. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 45mm
- Style:
- UCFC
- Pitch Circle Diameter:
- 132mm
Technical
Technical
| d | 45mm |
|---|---|
| a | 160mm |
| P | 132mm |
| e | 93.3mm |
| i | 10mm |
| L | 38mm |
| s | 16mm |
| j | 12mm |
| k | 10mm |
| g | 26mm |
| f | 105mm |
| z | 40.2mm |
| Bi | 49.2mm |
| n | 19mm |
| Bolt Size | M14 |
| Weight | 2.8 kg |
| Dynamic load | 2560 kgf |
| Static load | 1810 kgf |
