SKU: UCFC.211.TS.CHAL

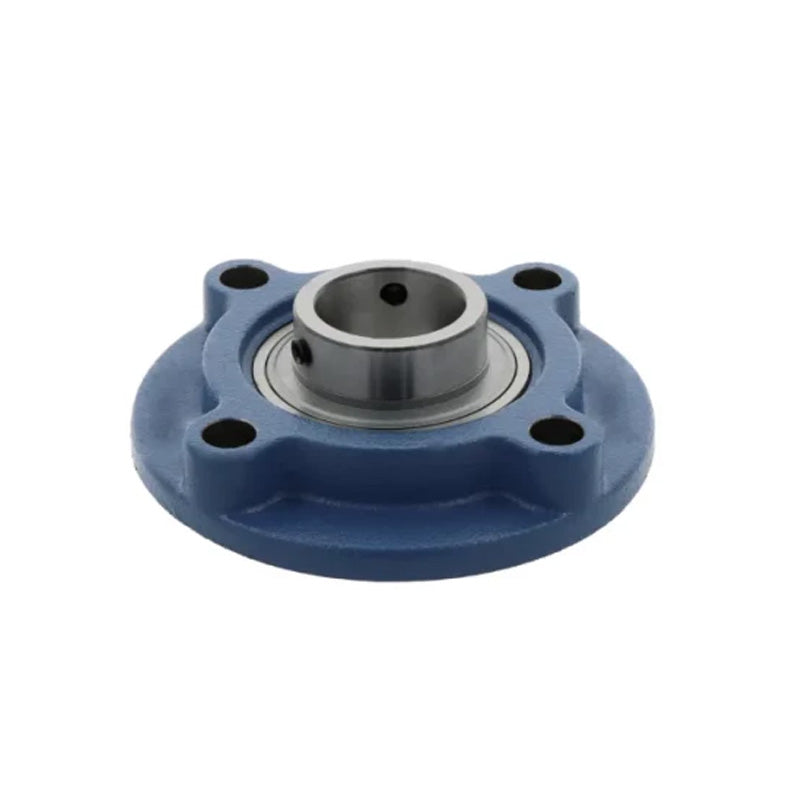

Challenge / FK UCFC211 Metric Cast Iron Four Bolt Round Flanged Housing with 55mm Bore 185mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
Challenge / FK UCFC211 Metric Cast Iron Four Bolt Round Flanged Housing with 55mm Bore 185mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
Regular price
$237.62
ex VAT
Regular price
Sale price
$237.62
ex VAT
Equivalent to: UCFC.211
In stock
Price Break
10+
$211.48
19+
$199.60
29+
$197.22
39+
$194.85
49+
$192.47
74+
$190.10
99+
$178.22
199+
$175.84
249+
$173.46
499+
$171.09
999+
$166.33
Description
Description
UCFC Cast Iron 4 Bolt Round Housing: These normal-duty bearing units are fitted with a triple lip seal in a cast iron housing and includes a grease nipple to facilitate re-lubrication. These bearings are perfect for agricultural applications where the bearings are exposed to contamination. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: High tolerance to harsh environments, cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Equivalent: UCFC.211
- Brand / Quality:
- Challenge / FK - Good Quality
- Inside Diameter:
- 55mm
- Style:
- UCFC
- Pitch Circle Diameter:
- 150mm
Technical
Technical
| Shaft Diameter d | 55mm |
|---|---|
| a | 185mm |
| p | 150mm |
| e | 106.1mm |
| i | 13mm |
| g | 31mm |
| l | 43mm |
| s | 19 inch |
| j | 12mm |
| k | 15mm |
| f | 125mm |
| z | 46.4mm |
| Bi | 55.6mm |
| n | 22.2mm |
| Bolt Size | M16mm |
| Insert No | UC211 |
| Housing No | FC211 |
