SKU: UCFE215-47-SNR

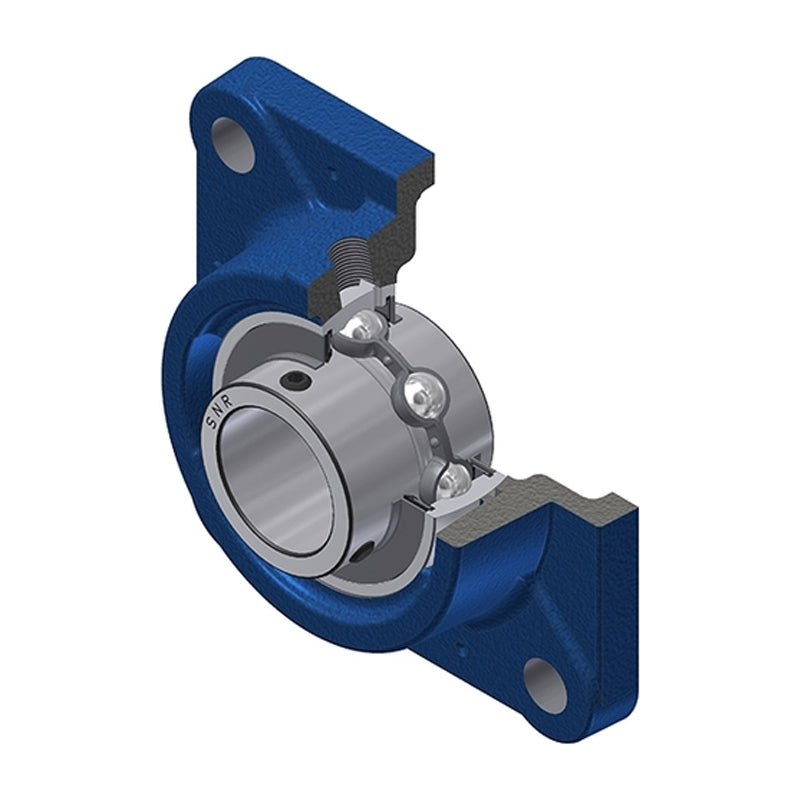

SNR UCFE215-47 Imperial Four Bolt Square Cast Iron Flange Housing with 2-15/16 inch Bore Insert - Allow 2-3 Days
SNR UCFE215-47 Imperial Four Bolt Square Cast Iron Flange Housing with 2-15/16 inch Bore Insert - Allow 2-3 Days
Regular price
$237.89
ex VAT
Regular price
Sale price
$237.89
ex VAT
In stock
Price Break
5+
$235.51
10+
$226.00
20+
$221.24
50+
$214.10
100+
$209.34
500+
$197.45
1000+
$166.52
Description
Description
UCFE/UCFEX Series 4 Bolt Cast Iron Square Flange Housing: These cast iron housing units include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: High tolerance to harsh environments, cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 74.61mm = 2.937 (2-15/16) inch
- Style:
- UCFE
- Bolt Hole Centres:
- 153mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 2-15/16 inch |
| A | 59mm |
| A1 | 20mm |
| A2 | 85.8mm |
| B | 77.8mm |
| e | 41.3mm |
| J | 153mm |
| L | 197mm |
| N | 23mm |
| S | 33.3mm |
| G | R1/8″ |
| --- | Load rating |
| Dynamic load C | 66 kN |
| Static load C0 | 49.5 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 27.1 Nm |
| Mass | 6.35 kg |
