SKU: UCFE216-SNR

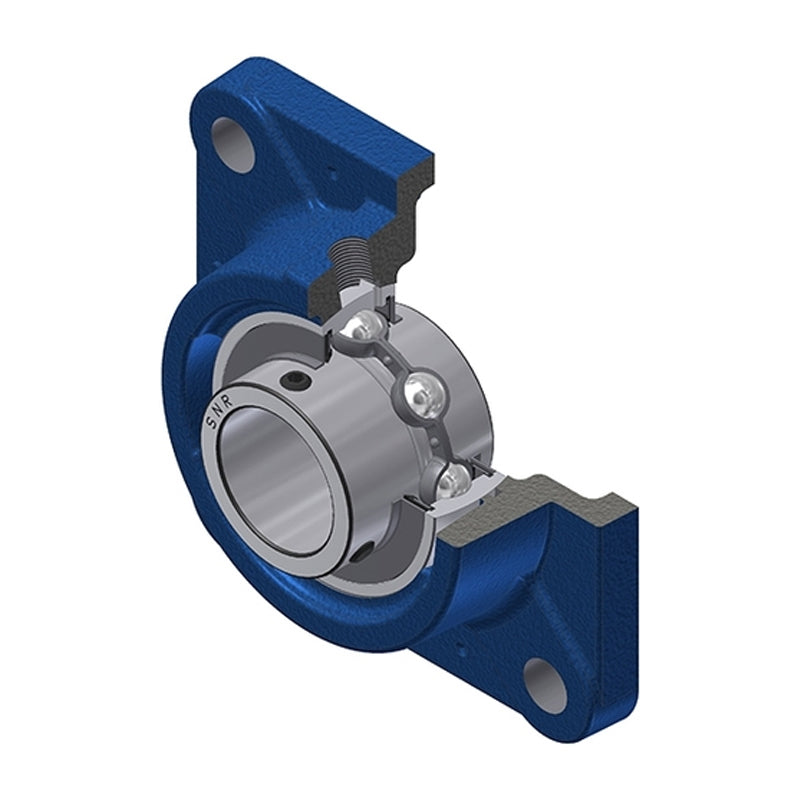

SNR UCFE216 Metric Four Bolt Square Cast Iron Flange Housing with 80mm Bore Insert - Allow 2-3 Days
SNR UCFE216 Metric Four Bolt Square Cast Iron Flange Housing with 80mm Bore Insert - Allow 2-3 Days
Regular price
$181.12
ex VAT
Regular price
Sale price
$181.12
ex VAT
In stock
Price Break
10+
$161.20
19+
$152.14
29+
$150.33
39+
$148.52
49+
$146.71
74+
$144.90
99+
$135.84
199+
$134.03
249+
$132.22
499+
$130.41
999+
$126.78
Description
Description
UCFE/UCFEX Series 4 Bolt Cast Iron Square Flange Housing: These cast iron housing units include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: High tolerance to harsh environments, cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 80mm
- Style:
- UCFE
- Bolt Hole Centres:
- 153mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 80mm |
| A | 61mm |
| A1 | 20mm |
| A2 | 90.6mm |
| B | 82.6mm |
| e | 41.3mm |
| J | 153mm |
| L | 197mm |
| N | 23mm |
| S | 33.3mm |
| G | R1/8″ |
| --- | Load rating |
| Dynamic load C | 72.5 kN |
| Static load C0 | 54.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 33 Nm |
| Mass | 7.04 kg |
