SKU: UCFH208D1-NTN

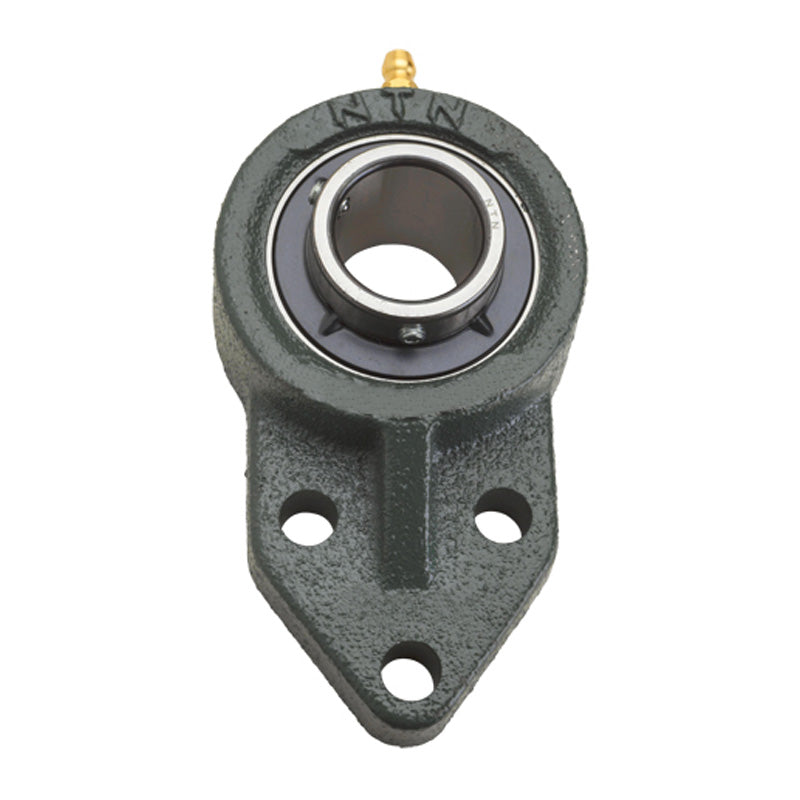

NTN UCFH208D1 Metric 3 Bolt Cast Iron Bracket Flange Bearing 40mm Bore
NTN UCFH208D1 Metric 3 Bolt Cast Iron Bracket Flange Bearing 40mm Bore
Regular price
$53.46
ex VAT
Regular price
Sale price
$53.46
ex VAT
In stock
Price Break
10+
$47.58
19+
$44.91
29+
$44.37
39+
$43.84
49+
$43.30
74+
$42.77
99+
$40.10
199+
$39.56
249+
$39.03
499+
$38.49
999+
$37.42
Description
Description
UCFH200 Series 3 Bolt Cast Iron Bracket Flange Units: These bearing units are supplied with a fully sealed bearing insert fitted in the flange housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 40mm
- Style:
- UCFH
- Bolt Hole Centres:
- 50mm
Technical
Technical

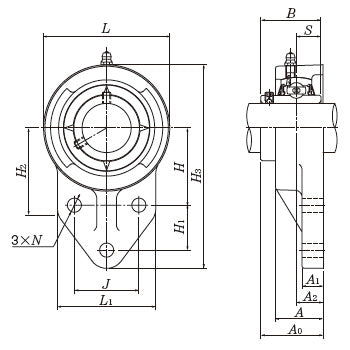

| Shaft diameter | 40mm |
|---|---|
| H<sub>3</sub> | 164mm |
| J | 50mm |
| A<sub>2</sub> | 21mm |
| A<sub>1</sub> | 16mm |
| A | 36mm |
| N | 12mm |
| H | 60mm |
| H<sub>1</sub> | 41mm |
| L<sub>1</sub> | 78mm |
| H<sub>2</sub> | 72mm |
| L | 100mm |
| A<sub>0</sub> | 51.2mm |
| B | 49.2mm |
| S | 19mm |
| Fixing bolt | M10 |
| Mass | 1.8 kg |
