SKU: UCFH209D1-NTN
NTN UCFH209D1 Metric 3 Bolt Cast Iron Bracket Flange Bearing 45mm Bore - Allow 2-3 Days
NTN UCFH209D1 Metric 3 Bolt Cast Iron Bracket Flange Bearing 45mm Bore - Allow 2-3 Days
Regular price
$74.34
ex VAT
Regular price
Sale price
$74.34
ex VAT
In stock
Price Break
5+
$73.60
10+
$70.62
20+
$69.14
50+
$66.91
100+
$65.42
500+
$61.70
1000+
$52.04
Description
Description

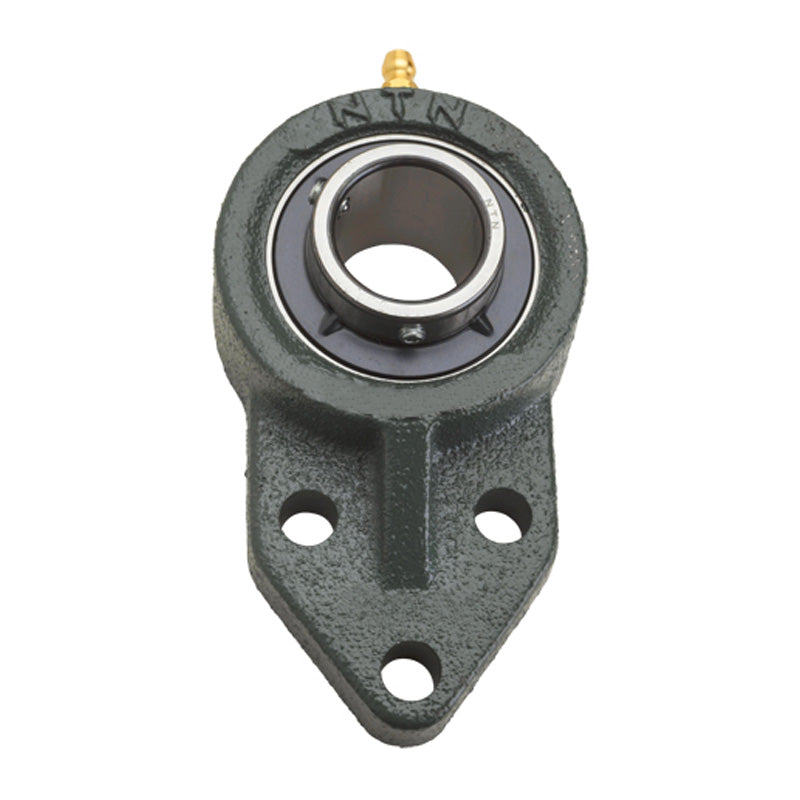

UCFH200 Series 3 Bolt Cast Iron Bracket Flange Units: These bearing units are supplied with a fully sealed bearing insert fitted in the flange housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 45mm
- Style:
- UCFH
- Bolt Hole Centres:
- 54mm
Technical
Technical
| Shaft diameter | 45mm |
|---|---|
| H<sub>3</sub> | 174mm |
| J | 54mm |
| A<sub>2</sub> | 22mm |
| A<sub>1</sub> | 18mm |
| A | 38mm |
| N | 12mm |
| H | 65mm |
| H<sub>1</sub> | 43mm |
| L<sub>1</sub> | 80mm |
| H<sub>2</sub> | 76mm |
| L | 106mm |
| A<sub>0</sub> | 52.2mm |
| B | 49.2mm |
| S | 19mm |
| Fixing bolt | M10 |
| Mass | 2.1 kg |
