SKU: UCFL307

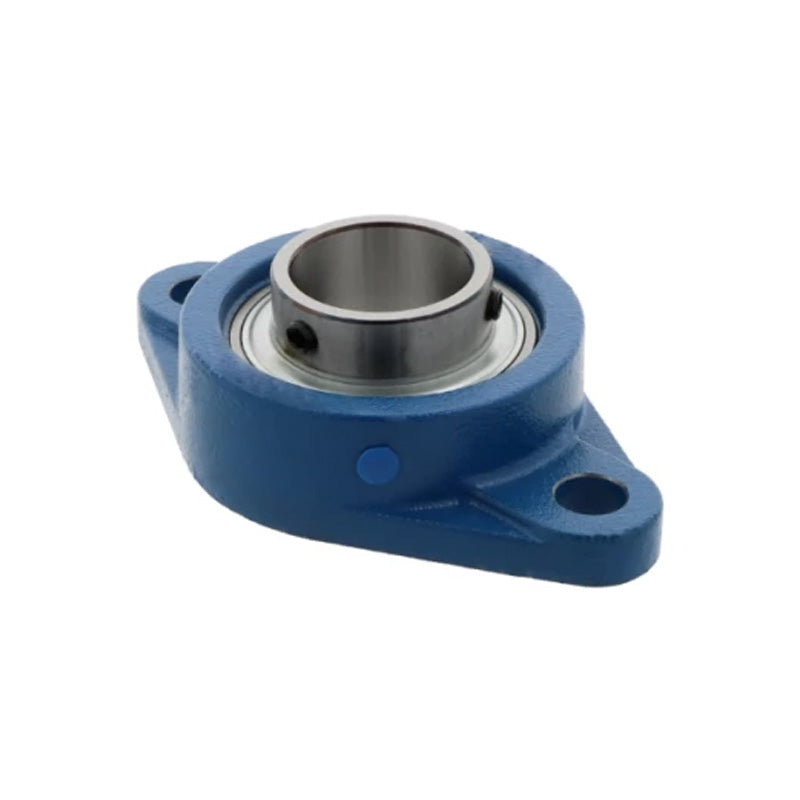

UCFL307 Heavy Duty Metric Two Bolt Cast Iron Oval Housing with 35mm Bore
UCFL307 Heavy Duty Metric Two Bolt Cast Iron Oval Housing with 35mm Bore
Regular price
$43.11
ex VAT
Regular price
Sale price
$43.11
ex VAT
In stock
Price Break
10+
$38.37
19+
$36.21
29+
$35.78
39+
$35.35
49+
$34.92
74+
$34.49
99+
$32.33
199+
$31.90
249+
$31.47
499+
$31.04
999+
$30.18
Description
Description
UCFL300 Series Heavy Duty 2 Bolt Oval Housings: These heavy-duty bearing units are supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 35mm
- Style:
- UCFL
- Bolt Hole Centres:
- 141mm
Technical
Technical
| d | 35mm |
|---|---|
| a | 185mm |
| e | 141mm |
| i | 20mm |
| g | 16mm |
| l | 36mm |
| s | 23mm |
| b | 100mm |
| z | 49mm |
| B | 48mm |
| n | 19mm |
| Bolt size | M20 |
| Bearing no | UC307 |
| Housing no | FL307 |
| Weight | 1.674 kg |
