SKU: UCFL318

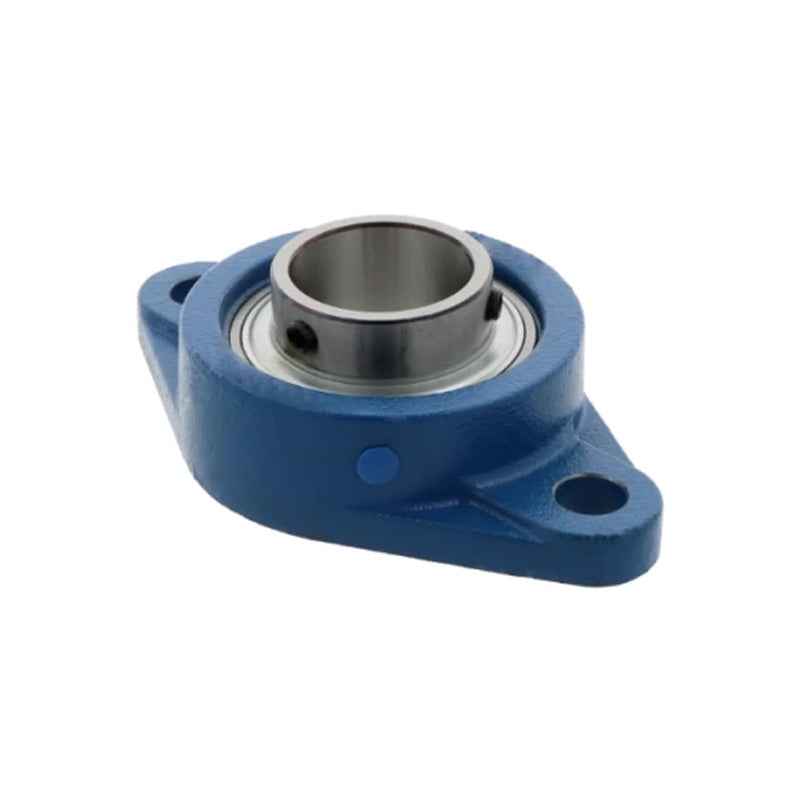

UCFL318 Heavy Duty Metric Two Bolt Cast Iron Oval Housing with 90mm Bore
UCFL318 Heavy Duty Metric Two Bolt Cast Iron Oval Housing with 90mm Bore
Regular price
$347.37
ex VAT
Regular price
Sale price
$347.37
ex VAT
In stock
Price Break
10+
$309.16
19+
$291.79
29+
$288.32
39+
$284.84
49+
$281.37
74+
$277.90
99+
$260.53
199+
$257.05
249+
$253.58
499+
$250.11
999+
$243.16
Description
Description
UCFL300 Series Heavy Duty 2 Bolt Oval Housings: These heavy-duty bearing units are supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 90mm
- Style:
- UCFL
- Bolt Hole Centres:
- 315mm
Technical
Technical
| d | 90mm |
|---|---|
| a | 385mm |
| e | 315mm |
| i | 44mm |
| g | 36mm |
| l | 76mm |
| s | 38mm |
| b | 235mm |
| z | 100mm |
| B | 96mm |
| n | 40mm |
| Bolt size | M33 |
| Bearing no | UC318 |
| Housing no | FL318 |
| Weight | 16.869 kg |
