SKU: UCFLX.08

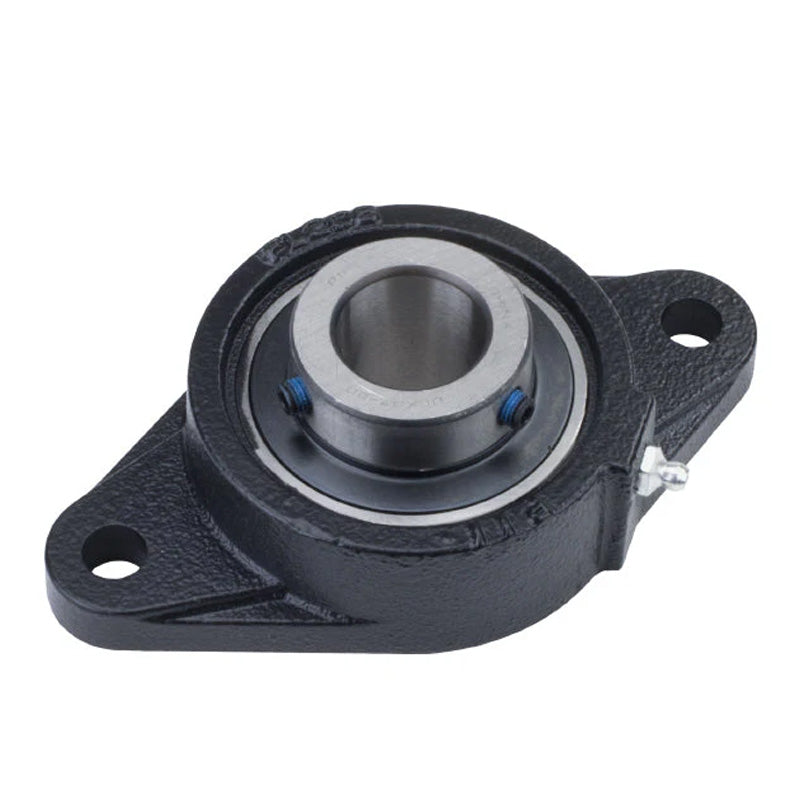

UCFLX08 Metric Two Bolt Oval Cast Iron Housing with 40mm Bore Insert
UCFLX08 Metric Two Bolt Oval Cast Iron Housing with 40mm Bore Insert
Regular price
$11.06
ex VAT
Regular price
Sale price
$11.06
ex VAT
Equivalent to: MSFT40
In stock
Price Break
10+
$9.84
19+
$9.29
29+
$9.18
39+
$9.07
49+
$8.96
74+
$8.85
99+
$8.30
199+
$8.18
249+
$8.07
499+
$7.96
999+
$7.74
Description
Description
|
UCFLX or MSFT Series Medium Duty 2 Bolt Oval Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted.
The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Equivalent: MSFT40
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 40mm
- Style:
- UCFLX
- Bolt Hole Centres:
- 148mm
Technical
Technical
| d | 40mm |
|---|---|
| a | 179mm |
| e | 148mm |
| i | 148mm |
| g | 16mm |
| l | 40mm |
| s | 16mm |
| b | 111mm |
| z | 52.2mm |
| Bi | 49.2mm |
| n | 19mm |
| Bolt | M14 |
| Weight | 2 kg |
| Dynamic load | 2650 kgf |
| Static load | 1910 kgf |
| Rec max speed | 3700 rpm |
