SKU: UCFLX.09-26

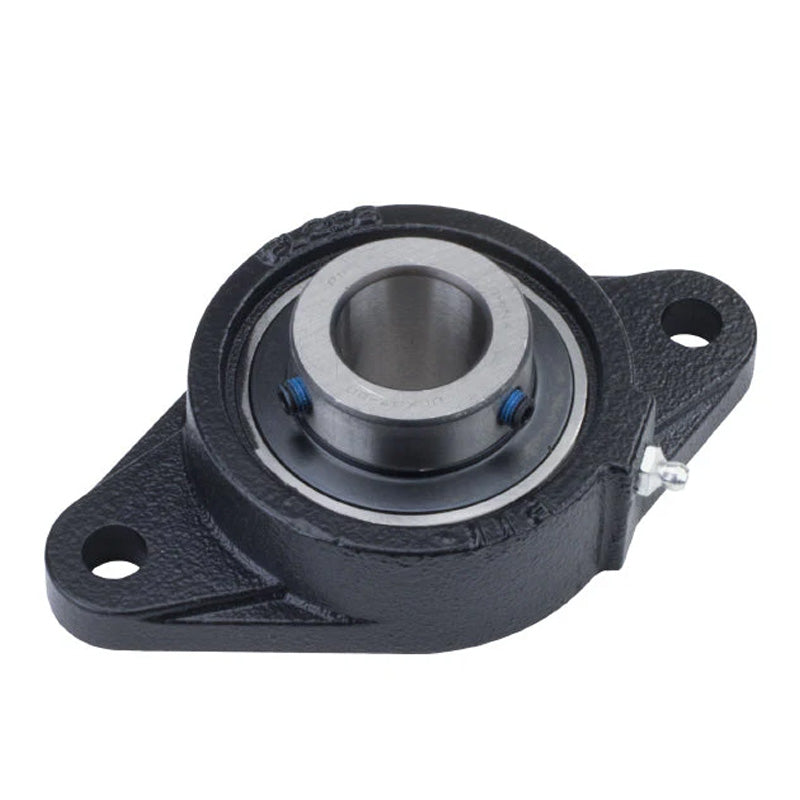

UCFLX09-26 Imperial Two Bolt Oval Cast Iron Housing with 1-5/8 inch Bore Insert
UCFLX09-26 Imperial Two Bolt Oval Cast Iron Housing with 1-5/8 inch Bore Insert
Regular price
$11.15
ex VAT
Regular price
Sale price
$11.15
ex VAT
Equivalent to: MSFT1-5/8
In stock
Price Break
10+
$9.92
19+
$9.37
29+
$9.25
39+
$9.14
49+
$9.03
74+
$8.92
99+
$8.36
199+
$8.25
249+
$8.14
499+
$8.03
999+
$7.81
Description
Description
|
UCFLX or MSFT Series Medium Duty 2 Bolt Oval Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted.
The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Equivalent: MSFT1-5/8
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 41.28mm = 1.625 (1-5/8) inch
- Style:
- UCFLX
- Bolt Hole Centres:
- 157.16mm = 6.187 (6-3/16) inch
Technical
Technical
| d | 1-5/8 inch |
|---|---|
| a | 189mm = 7-7/16 inch |
| e | 157mm = 6-3/16 inch |
| i | 157mm = 6-3/16 inch |
| g | 16mm = 5/8 inch |
| l | 40mm = 1-9/16 inch |
| s | 16mm = 5/8 inch |
| b | 116mm = 4-9/16 inch |
| z | 55.6mm = 2-3/16 inch |
| Bi | 51.6mm = 2.0315 inch |
| n | 19mm = 0.748 inch |
| Bolt | 14mm = 1/2 inch |
| Weight | 2.4 kg |
| Dynamic load | 2750 kgf |
| Static load | 2020 kgf |
