SKU: UCFS307D1-NTN

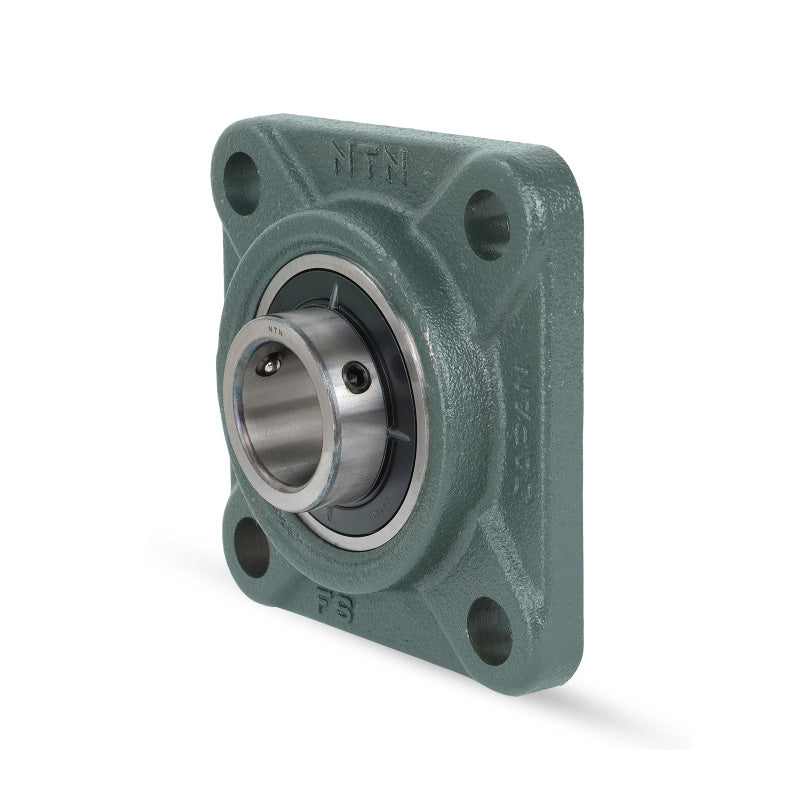

NTN UCFS307D1 Metric Four Bolt Square Cast Iron Flange Housing with 35mm Bore Insert - Allow 2-3 Days
NTN UCFS307D1 Metric Four Bolt Square Cast Iron Flange Housing with 35mm Bore Insert - Allow 2-3 Days
Regular price
$89.25
ex VAT
Regular price
Sale price
$89.25
ex VAT
In stock
Price Break
5+
$88.36
10+
$84.79
20+
$83.00
50+
$80.33
100+
$78.54
500+
$74.08
1000+
$62.48
Description
Description
UCFS Series 4 Bolt Square Cast Iron Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the cast iron housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost-effective bearing/housing assembly, can be re-lubricated, replaceable insert, grub screw fixing
Benefits: Cost-effective bearing/housing assembly, can be re-lubricated, replaceable insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 35mm
- Style:
- UCFS
- Bolt Hole Centres:
- 100mm
Technical
Technical
| Shaft diameter | 35mm |
|---|---|
| L | 135mm |
| J | 100mm |
| A<sub>2</sub> | 11mm |
| N | 19mm |
| A<sub>3</sub> | 9mm |
| A<sub>1</sub> | 16mm |
| A | 36mm |
| H<sub>3</sub> | 100mm |
| A<sub>0</sub> | 49mm |
| B | 48mm |
| S | 19mm |
| Fixing bolt | M16 |
| Mass | 2.3 kg |
