SKU: UCFS308-SNR

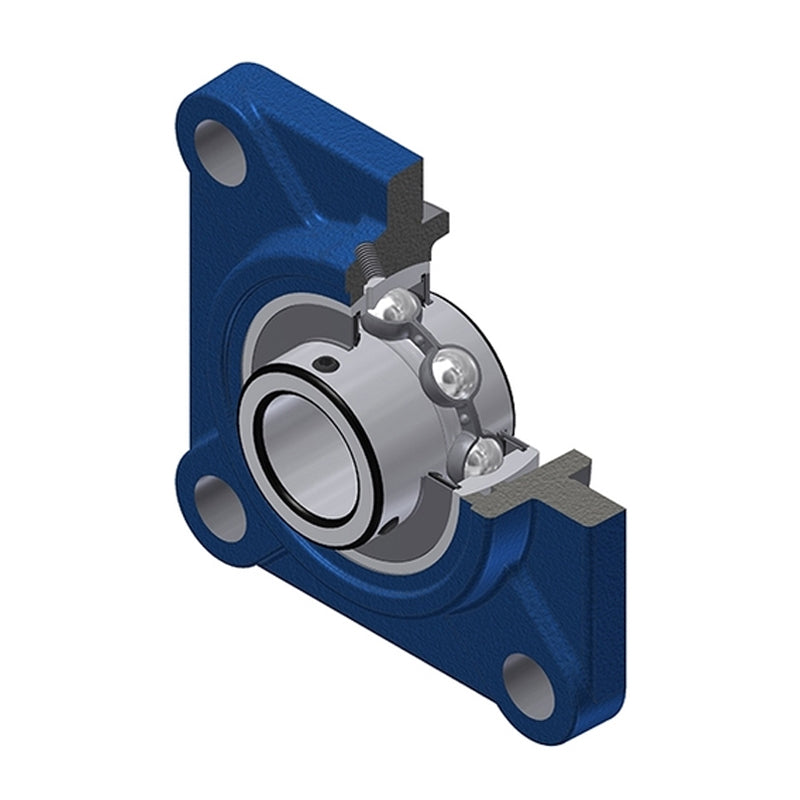

SNR UCFS308 Metric Four Bolt Square Cast Iron Flange Housing with 40mm Bore Insert - Allow 2-3 Days
SNR UCFS308 Metric Four Bolt Square Cast Iron Flange Housing with 40mm Bore Insert - Allow 2-3 Days
Regular price
$81.93
ex VAT
Regular price
Sale price
$81.93
ex VAT
In stock
Price Break
10+
$72.92
19+
$68.82
29+
$68.00
39+
$67.18
49+
$66.36
74+
$65.54
99+
$61.45
199+
$60.63
249+
$59.81
499+
$58.99
999+
$57.35
Couldn't load pickup availability
Description
Description
UCFS Series 4 Bolt Square Cast Iron Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the cast iron housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost-effective bearing/housing assembly, can be re-lubricated, replaceable insert, grub screw fixing
Benefits: Cost-effective bearing/housing assembly, can be re-lubricated, replaceable insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 40mm
- Style:
- UCFS
- Bolt Hole Centres:
- 112mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 40mm |
| A | 40mm |
| A1 | 17mm |
| A2 | 46mm |
| A4 | 30mm |
| B | 52mm |
| e | 13mm |
| H3 | 115mm |
| J | 112mm |
| L | 150mm |
| N | 19mm |
| S | 19mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 40.56 kN |
| Static load C0 | 24 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 22 Nm |
| Mass | 3.06 kg |
