SKU: UCFS309-SNR

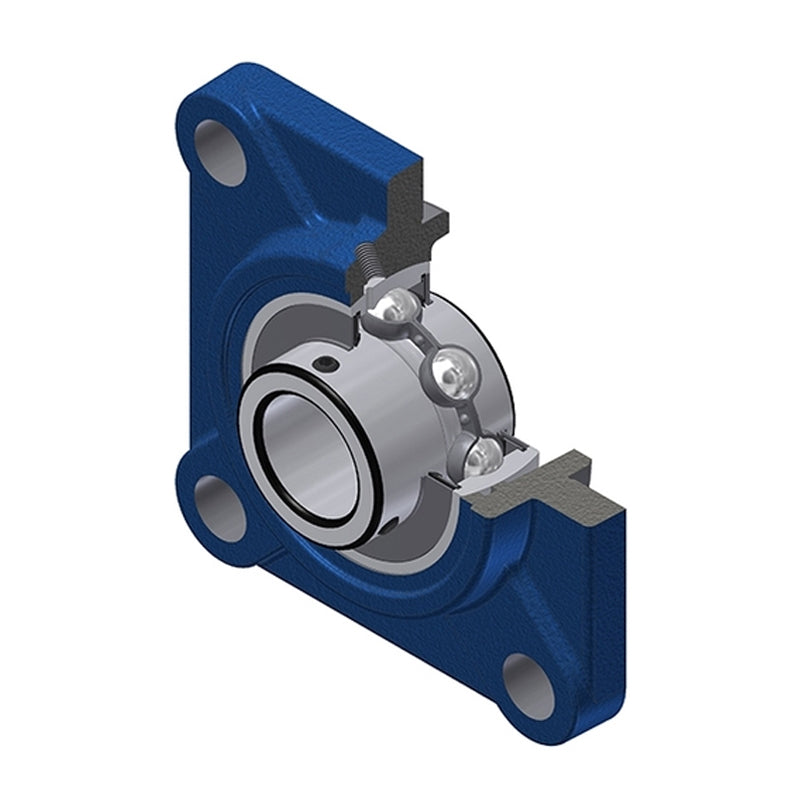

SNR UCFS309 Metric Four Bolt Square Cast Iron Flange Housing with 45mm Bore Insert - Allow 2-3 Days
SNR UCFS309 Metric Four Bolt Square Cast Iron Flange Housing with 45mm Bore Insert - Allow 2-3 Days
Regular price
$91.35
ex VAT
Regular price
Sale price
$91.35
ex VAT
In stock
Price Break
10+
$81.30
19+
$76.73
29+
$75.82
39+
$74.91
49+
$73.99
74+
$73.08
99+
$68.51
199+
$67.60
249+
$66.69
499+
$65.77
999+
$63.95
Description
Description
UCFS Series 4 Bolt Square Cast Iron Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the cast iron housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost-effective bearing/housing assembly, can be re-lubricated, replaceable insert, grub screw fixing
Benefits: Cost-effective bearing/housing assembly, can be re-lubricated, replaceable insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 45mm
- Style:
- UCFS
- Bolt Hole Centres:
- 125mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 45mm |
| A | 44mm |
| A1 | 18mm |
| A2 | 49mm |
| A4 | 33mm |
| B | 57mm |
| e | 14mm |
| H3 | 125mm |
| J | 125mm |
| L | 160mm |
| N | 19mm |
| S | 22mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 53 kN |
| Static load C0 | 31.8 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 22 Nm |
| Mass | 3.88 kg |
