SKU: UCFX.08

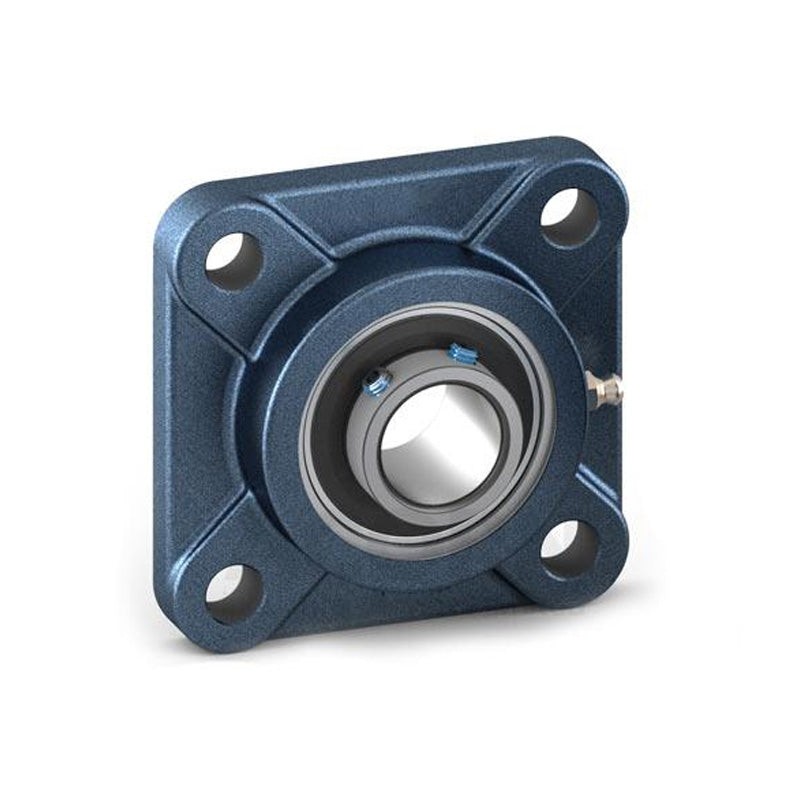

UCFX08 Metric Four Bolt Cast Iron Square Housing with 40mm Bore Insert
UCFX08 Metric Four Bolt Cast Iron Square Housing with 40mm Bore Insert
Regular price
$38.84
ex VAT
Regular price
Sale price
$38.84
ex VAT
Equivalent to: MSF40
In stock
Price Break
10+
$34.57
19+
$32.63
29+
$32.24
39+
$31.85
49+
$31.46
74+
$31.07
99+
$29.13
199+
$28.74
249+
$28.35
499+
$27.96
999+
$27.19
Description
Description
|
UCFX or MSF Series 4 Bolt Square Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Equivalent: MSF40
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 40mm
- Style:
- UCFX
- Bolt Hole Centres:
- 105mm
Technical
Technical
| d | 40mm |
|---|---|
| a | 137mm |
| e | 105mm |
| i | 22mm |
| g | 14mm |
| L | 40mm |
| s | 19mm |
| Z | 52.2mm |
| Bi | 49.2mm |
| n | 19mm |
| Bolt Size | M16 |
| Weight | 2.1 kg |
| Dynamic load | 2650 kgf |
| Static load | 1910 kgf |
| Rec max speed | 3700 rpm |
