SKU: UCFX.09.TS.CHAL

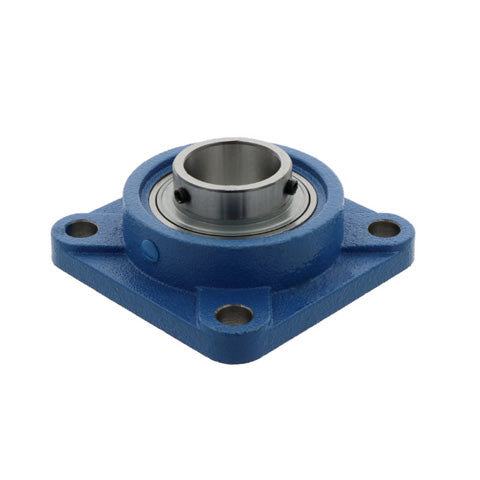

Challenge / FK UCFX09 Metric Cast Iron Four Bolt Square Flange Housing with 45mm Bore Insert and Triple Lip Seal Ideal for Agricultural and Outdoor Use
Challenge / FK UCFX09 Metric Cast Iron Four Bolt Square Flange Housing with 45mm Bore Insert and Triple Lip Seal Ideal for Agricultural and Outdoor Use
Regular price
$104.69
ex VAT
Regular price
Sale price
$104.69
ex VAT
Equivalent to: UCFX.09
In stock
Price Break
10+
$93.17
19+
$87.94
29+
$86.89
39+
$85.85
49+
$84.80
74+
$83.75
99+
$78.52
199+
$77.47
249+
$76.42
499+
$75.38
999+
$73.28
Description
Description
UCFX Cast Iron Four Bolt Square Flange Housing: These medium-duty bearing units are fitted with a triple lip seal in a cast iron housing and includes a grease nipple to facilitate re-lubrication. These bearings are perfect for agricultural applications where the bearings are exposed to contamination. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: High tolerance to harsh environments, cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Equivalent: UCFX.09
- Brand / Quality:
- Challenge / FK - Good Quality
- Inside Diameter:
- 45mm
- Style:
- UCFX
- Bolt Hole Centres:
- 111mm
Technical
Technical

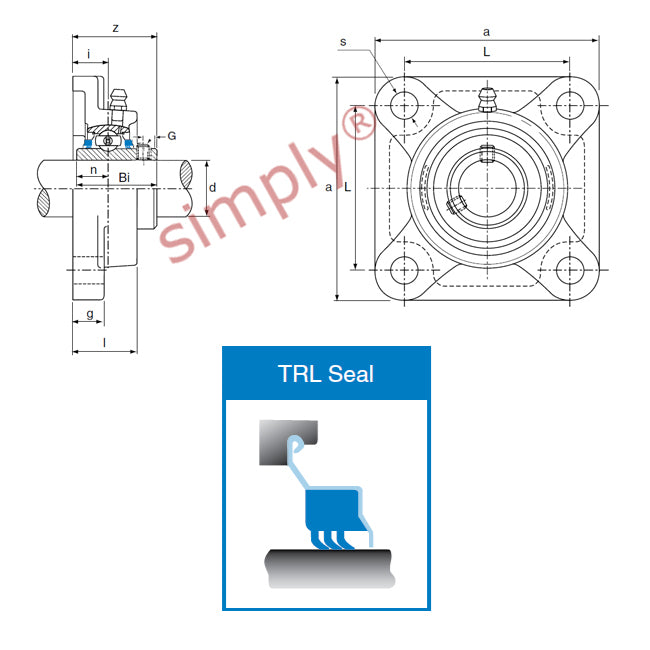

| Shaft Diameter d | 45mm |
|---|---|
| Width a | 143mm |
| Recommended Bolt Centres L | 111mm |
| Back of Casting to Centre Line of Bearing i | 23mm |
| Depth of Casting at Bolt g | 14mm |
| Overall Casting Height l | 40mm |
| Bolt Hole Diameter s | 19mm |
| Back of Casting to Bearing Front z | 55.6mm |
| Bearing Insert Width Bi | 51.6mm |
| Back of Bearing to Centre Line n | 19mm |
| Bolt Size | M16 |
| Grub Screws x 2 | M8x1.0mm |
| Load Rating (Dynamic) | 2750kg |
| Load Rating (Static) | 2020kg |
| Max Speed | 1900 rev/min |
| Working Temperature | -30°C to +120°C |
| Insert No | UCX09 |
| Housing No | FX09 |
