SKU: UCFX.11

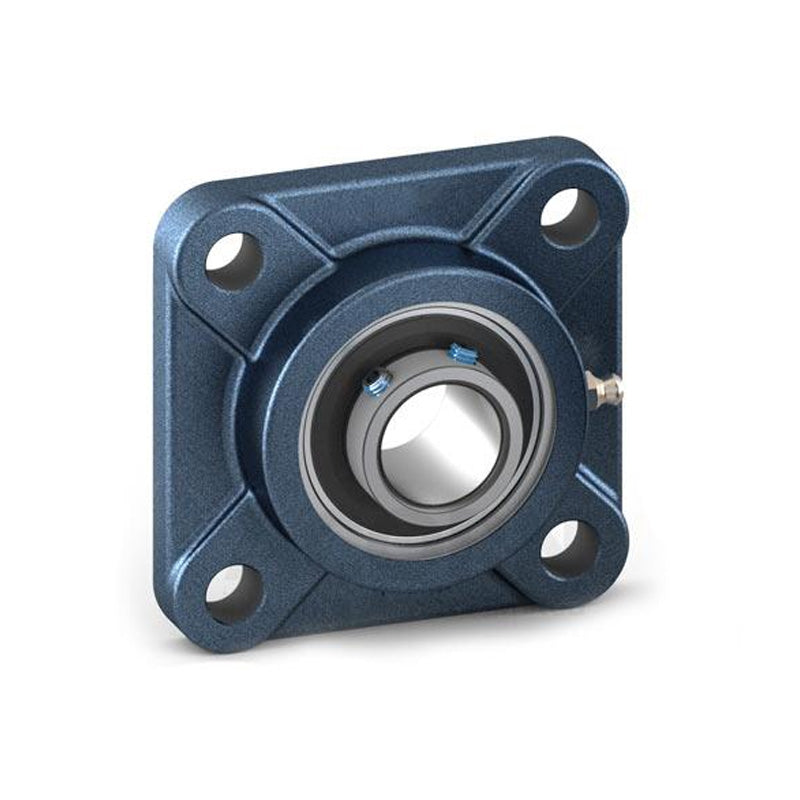

UCFX11 Metric Four Bolt Cast Iron Square Housing with 55mm Bore Insert
UCFX11 Metric Four Bolt Cast Iron Square Housing with 55mm Bore Insert
Regular price
$52.42
ex VAT
Regular price
Sale price
$52.42
ex VAT
Equivalent to: MSF55
In stock
Price Break
10+
$46.65
19+
$44.03
29+
$43.51
39+
$42.98
49+
$42.46
74+
$41.94
99+
$39.32
199+
$38.79
249+
$38.27
499+
$37.74
999+
$36.69
Description
Description
|
UCFX or MSF Series 4 Bolt Square Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Equivalent: MSF55
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 55mm
- Style:
- UCFX
- Bolt Hole Centres:
- 143mm
Technical
Technical
| d | 55mm |
|---|---|
| a | 175mm |
| e | 143mm |
| i | 29mm |
| g | 20mm |
| L | 49mm |
| s | 19mm |
| Z | 68.7mm |
| Bi | 65.7mm |
| n | 25.4mm |
| Bolt Size | M16 |
| Weight | 4.7 kg |
| Dynamic load | 4100 kgf |
| Static load | 3150 kgf |
| Rec max speed | 2800 rpm |
